Definition Type: ComplexType
Name: PostalAddress1
Namespace: urn:swift:xsd:$pain.001.001.01
Containing Schema: pain.001.001.01.xsd
Abstract

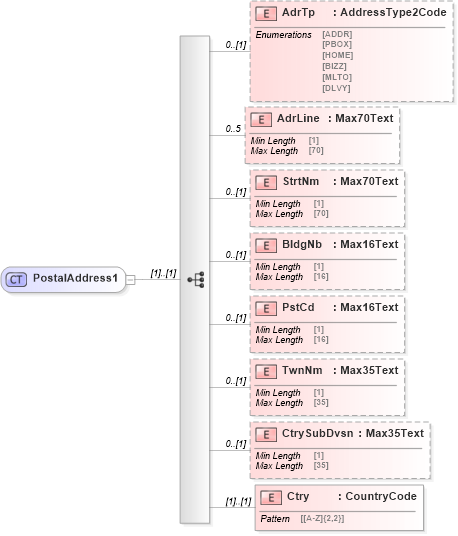

Collapse XSD Schema Diagram:
Drilldown into Ctry in schema pain_001_001_01_xsd Drilldown into CtrySubDvsn in schema pain_001_001_01_xsd Drilldown into TwnNm in schema pain_001_001_01_xsd Drilldown into PstCd in schema pain_001_001_01_xsd Drilldown into BldgNb in schema pain_001_001_01_xsd Drilldown into StrtNm in schema pain_001_001_01_xsd Drilldown into AdrLine in schema pain_001_001_01_xsd Drilldown into AdrTp in schema pain_001_001_01_xsdXSD Diagram of PostalAddress1 in schema pain_001_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="PostalAddress1">
    <xs:sequence>
        <xs:element name="AdrTp" type="AddressType2Code" minOccurs="0" />
        <xs:element name="AdrLine" type="Max70Text" minOccurs="0" maxOccurs="5" />
        <xs:element name="StrtNm" type="Max70Text" minOccurs="0" />
        <xs:element name="BldgNb" type="Max16Text" minOccurs="0" />
        <xs:element name="PstCd" type="Max16Text" minOccurs="0" />
        <xs:element name="TwnNm" type="Max35Text" minOccurs="0" />
        <xs:element name="CtrySubDvsn" type="Max35Text" minOccurs="0" />
        <xs:element name="Ctry" type="CountryCode" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdrTp ist:AdrTp 0 (1)
AdrLine ist:AdrLine 0 5
StrtNm ist:StrtNm 0 (1)
BldgNb ist:BldgNb 0 (1)
PstCd ist:PstCd 0 (1)
TwnNm ist:TwnNm 0 (1)
CtrySubDvsn ist:CtrySubDvsn 0 (1)
Ctry ist:Ctry (1) (1)
Collapse Derivation Tree:
Collapse References:
ist:Adr, ist:PstlAdr, ist:PstlAdr, ist:PstlAdr
