Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PriceListLineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:LineType
Containing Schema: PriceList.xsd
Abstract

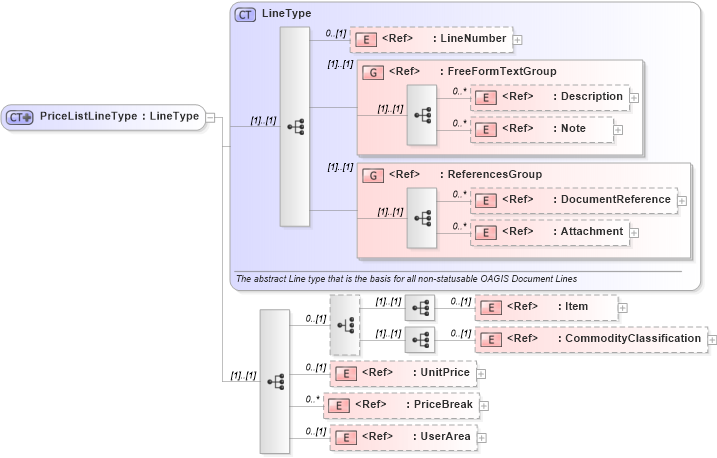

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PriceBreak in schema ordermanagementcomponents_xsd Drilldown into UnitPrice in schema components_xsd Drilldown into CommodityClassification in schema components_xsd Drilldown into Item in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsdXSD Diagram of PriceListLineType in schema pricelist_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="PriceListLineType">
    <xsd:complexContent>
        <xsd:extension base="LineType">
            <xsd:sequence>
                <xsd:choice minOccurs="0">
                    <xsd:sequence>
                        <xsd:element ref="Item" minOccurs="0">
                            <xsd:annotation>
                                <xsd:documentation>Identifies the specific Item from the Catalog.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                    </xsd:sequence>
                    <xsd:sequence>
                        <xsd:element ref="CommodityClassification" minOccurs="0">
                            <xsd:annotation>
                                <xsd:documentation>Is the commodity code in the Catalog.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                    </xsd:sequence>
                </xsd:choice>
                <xsd:element ref="UnitPrice" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the amount per quantity.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="PriceBreak" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Item nsA:Item 0 (1)
CommodityClassification nsA:CommodityClassification 0 (1)
UnitPrice nsA:UnitPrice 0 (1)
PriceBreak nsA:PriceBreak 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:PriceListLine
