Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ProfessionalSkillType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

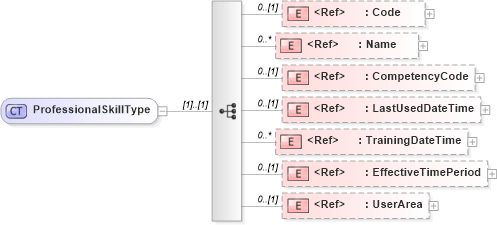

Drilldown into UserArea in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into TrainingDateTime in schema fields_xsd Drilldown into LastUsedDateTime in schema fields_xsd Drilldown into CompetencyCode in schema fields_xsd Drilldown into Name in schema fields_xsd Drilldown into Code in schema fields_xsdXSD Diagram of ProfessionalSkillType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ProfessionalSkillType">
    <xsd:sequence>
        <xsd:element ref="Code" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CompetencyCode" minOccurs="0" />
        <xsd:element ref="LastUsedDateTime" minOccurs="0" />
        <xsd:element ref="TrainingDateTime" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="EffectiveTimePeriod" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code nsA:Code 0 (1)
Name nsA:Name 0 unbounded
CompetencyCode nsA:CompetencyCode 0 (1)
LastUsedDateTime nsA:LastUsedDateTime 0 (1)
TrainingDateTime nsA:TrainingDateTime 0 unbounded
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:Skill
