Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: PstlAdr
Namespace: urn:swift:xsd:$pain.002.001.01
Type: ist:PostalAddress1
Containing Schema: pain.002.001.01.xsd
MinOccurs 0
MaxOccurs 1
Abstract

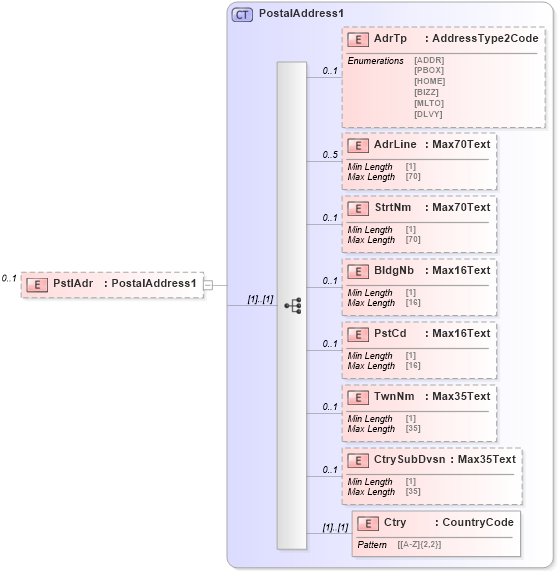

Collapse XSD Schema Diagram:
Drilldown into Ctry in schema pain_002_001_01_xsd Drilldown into CtrySubDvsn in schema pain_002_001_01_xsd Drilldown into TwnNm in schema pain_002_001_01_xsd Drilldown into PstCd in schema pain_002_001_01_xsd Drilldown into BldgNb in schema pain_002_001_01_xsd Drilldown into StrtNm in schema pain_002_001_01_xsd Drilldown into AdrLine in schema pain_002_001_01_xsd Drilldown into AdrTp in schema pain_002_001_01_xsd Drilldown into PostalAddress1 in schema pain_002_001_01_xsdXSD Diagram of PstlAdr in schema pain_002_001_01_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="PstlAdr" type="PostalAddress1" minOccurs="0" maxOccurs="1" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AdrTp ist:AdrTp 0 1
AdrLine ist:AdrLine 0 5
StrtNm ist:StrtNm 0 1
BldgNb ist:BldgNb 0 1
PstCd ist:PstCd 0 1
TwnNm ist:TwnNm 0 1
CtrySubDvsn ist:CtrySubDvsn 0 1
Ctry ist:Ctry (1) (1)
Collapse Derivation Tree:
