Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: QuoteSchedule
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:QuoteScheduleType
Containing Schema: Quote.xsd
Abstract
Documentation:
Indicates the schedule for the delivery of this line item.

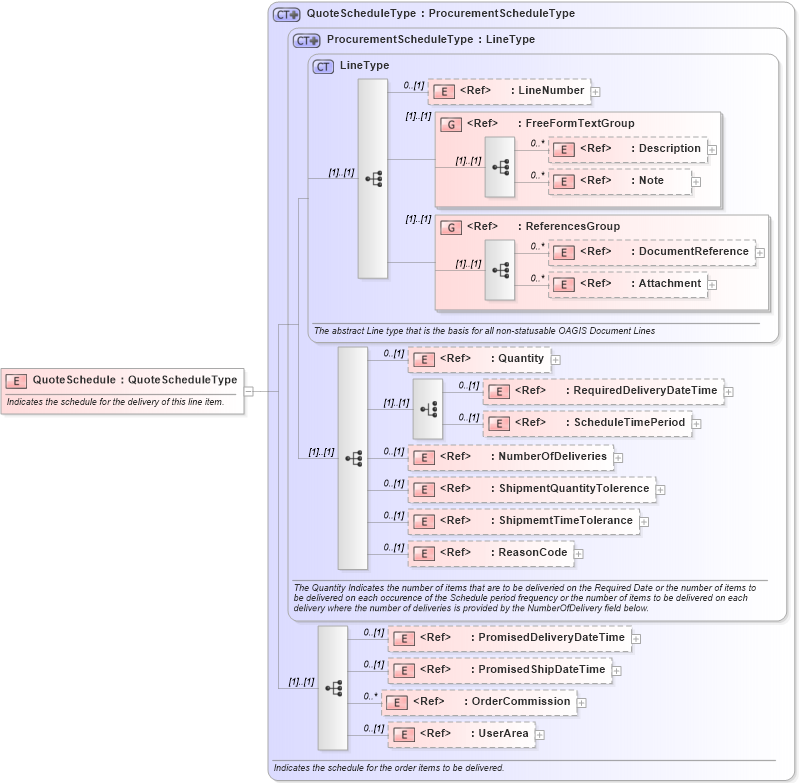

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into OrderCommission in schema ordermanagementcomponents_xsd Drilldown into PromisedShipDateTime in schema fields_xsd Drilldown into PromisedDeliveryDateTime in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into ShipmemtTimeTolerance in schema components_xsd Drilldown into ShipmentQuantityTolerence in schema components_xsd Drilldown into NumberOfDeliveries in schema fields_xsd Drilldown into ScheduleTimePeriod in schema components_xsd Drilldown into RequiredDeliveryDateTime in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into ProcurementScheduleType in schema ordermanagementcomponents_xsd Drilldown into QuoteScheduleType in schema quote_xsdXSD Diagram of QuoteSchedule in schema quote_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="QuoteSchedule" type="QuoteScheduleType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Indicates the schedule for the delivery of this line item.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Quantity nsA:Quantity 0 (1)
RequiredDeliveryDateTime nsA:RequiredDeliveryDateTime 0 (1)
ScheduleTimePeriod nsA:ScheduleTimePeriod 0 (1)
NumberOfDeliveries nsA:NumberOfDeliveries 0 (1)
ShipmentQuantityTolerence nsA:ShipmentQuantityTolerence 0 (1)
ShipmemtTimeTolerance nsA:ShipmemtTimeTolerance 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
PromisedDeliveryDateTime nsA:PromisedDeliveryDateTime 0 (1)
PromisedShipDateTime nsA:PromisedShipDateTime 0 (1)
OrderCommission nsA:OrderCommission 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
