Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ReceiveDelivery
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ReceiveDeliveryType
Containing Schema: ReceiveDelivery.xsd
Abstract
Documentation:
Represents a transaction for the receiving of goods or services. It may be used to indicate receipt of goods in conjunction with a purchase order system. The Delivery document contains CHARGE and DISTRIBUTN elements at various levels to support the assessment of receiving service or compliance penalty charges. Several large retailers that demand receiving efficiency commonly assess penalty charges for supplier deliveries that are not compliant with the retailer's policies. Charges may be incurred for deliveries, ship units or items that contain discrepancies from what was ordered or electronically manifested, for improper labeling of items and ship units and the incorrect packing or loading of ship units.

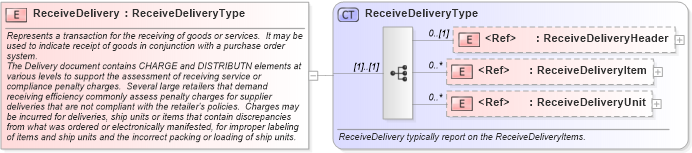

Collapse XSD Schema Diagram:
Drilldown into ReceiveDeliveryUnit in schema receivedelivery_xsd Drilldown into ReceiveDeliveryItem in schema receivedelivery_xsd Drilldown into ReceiveDeliveryHeader in schema receivedelivery_xsd Drilldown into ReceiveDeliveryType in schema receivedelivery_xsdXSD Diagram of ReceiveDelivery in schema receivedelivery_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ReceiveDelivery" type="ReceiveDeliveryType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Represents a transaction for the receiving of goods or services.  It may be used to indicate receipt of goods in conjunction with a purchase order system.</xsd:documentation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The Delivery document contains CHARGE and DISTRIBUTN elements at various levels to support the assessment of receiving service or compliance penalty charges.  Several large retailers that demand receiving efficiency commonly assess penalty charges for supplier deliveries that are not compliant with the retailer's policies.  Charges may be incurred for deliveries, ship units or items that contain discrepancies from what was ordered or electronically manifested, for improper labeling of items and ship units and the incorrect packing or loading of ship units.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReceiveDeliveryHeader nsA:ReceiveDeliveryHeader 0 (1)
ReceiveDeliveryItem nsA:ReceiveDeliveryItem 0 unbounded
ReceiveDeliveryUnit nsA:ReceiveDeliveryUnit 0 unbounded
Collapse Derivation Tree:
