Definition Type: ComplexType
Name: ReceiveDeliveryUnitType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShipUnitBaseType
Containing Schema: ReceiveDelivery.xsd
Abstract
Documentation:
Provides information that identifies and describes a particular shipping unit being received. This information usually directly references a DeliveryUnit on an OAGIS Delivery message or other shipping document. May also be used to provide context to adequately detail inventory discrepancies or compliance charges for a particular shipping unit

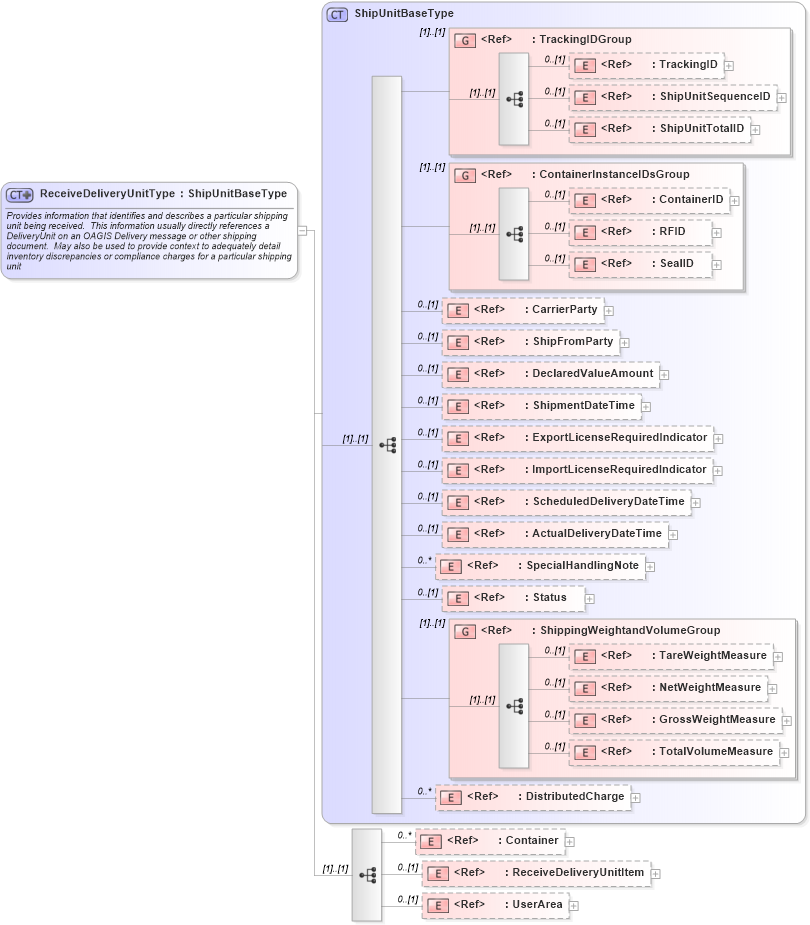

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ReceiveDeliveryUnitItem in schema receivedelivery_xsd Drilldown into Container in schema logisticscomponents_xsd Drilldown into DistributedCharge in schema components_xsd Drilldown into TotalVolumeMeasure in schema fields_xsd Drilldown into GrossWeightMeasure in schema fields_xsd Drilldown into NetWeightMeasure in schema fields_xsd Drilldown into TareWeightMeasure in schema fields_xsd Drilldown into ShippingWeightandVolumeGroup in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into SpecialHandlingNote in schema fields_xsd Drilldown into ActualDeliveryDateTime in schema fields_xsd Drilldown into ScheduledDeliveryDateTime in schema fields_xsd Drilldown into ImportLicenseRequiredIndicator in schema fields_xsd Drilldown into ExportLicenseRequiredIndicator in schema fields_xsd Drilldown into ShipmentDateTime in schema fields_xsd Drilldown into DeclaredValueAmount in schema fields_xsd Drilldown into ShipFromParty in schema components_xsd Drilldown into CarrierParty in schema components_xsd Drilldown into SealID in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into ContainerID in schema fields_xsd Drilldown into ContainerInstanceIDsGroup in schema logisticscomponents_xsd Drilldown into ShipUnitTotalID in schema fields_xsd Drilldown into ShipUnitSequenceID in schema fields_xsd Drilldown into TrackingID in schema fields_xsd Drilldown into TrackingIDGroup in schema logisticscomponents_xsd Drilldown into ShipUnitBaseType in schema logisticscomponents_xsdXSD Diagram of ReceiveDeliveryUnitType in schema receivedelivery_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ReceiveDeliveryUnitType">
    <xsd:annotation>
        <xsd:documentation>Provides information that identifies and describes a particular shipping unit being received.  This information usually directly references a DeliveryUnit on an OAGIS Delivery message or other shipping   document.  May also be used to provide context to adequately detail inventory discrepancies or compliance charges for a particular shipping unit</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ShipUnitBaseType">
            <xsd:sequence>
                <xsd:element ref="Container" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ReceiveDeliveryUnitItem" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TrackingID nsA:TrackingID 0 (1)
ShipUnitSequenceID nsA:ShipUnitSequenceID 0 (1)
ShipUnitTotalID nsA:ShipUnitTotalID 0 (1)
ContainerID nsA:ContainerID 0 (1)
RFID nsA:RFID 0 (1)
SealID nsA:SealID 0 (1)
CarrierParty nsA:CarrierParty 0 (1)
ShipFromParty nsA:ShipFromParty 0 (1)
DeclaredValueAmount nsA:DeclaredValueAmount 0 (1)
ShipmentDateTime nsA:ShipmentDateTime 0 (1)
ExportLicenseRequiredIndicator nsA:ExportLicenseRequiredIndicator 0 (1)
ImportLicenseRequiredIndicator nsA:ImportLicenseRequiredIndicator 0 (1)
ScheduledDeliveryDateTime nsA:ScheduledDeliveryDateTime 0 (1)
ActualDeliveryDateTime nsA:ActualDeliveryDateTime 0 (1)
SpecialHandlingNote nsA:SpecialHandlingNote 0 unbounded
Status nsA:Status 0 (1)
TareWeightMeasure nsA:TareWeightMeasure 0 (1)
NetWeightMeasure nsA:NetWeightMeasure 0 (1)
GrossWeightMeasure nsA:GrossWeightMeasure 0 (1)
TotalVolumeMeasure nsA:TotalVolumeMeasure 0 (1)
DistributedCharge nsA:DistributedCharge 0 unbounded
Container nsA:Container 0 unbounded
ReceiveDeliveryUnitItem nsA:ReceiveDeliveryUnitItem 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:TrackingIDGroup (1) (1)
<xs:group> nsA:ContainerInstanceIDsGroup (1) (1)
<xs:group> nsA:ShippingWeightandVolumeGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ReceiveDeliveryUnit
