Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: RecoverWIP
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RecoverWIPType
Containing Schema: RecoverWIP.xsd
Abstract
Documentation:
RecoverWIP is used to notify a Manufacturing Application of the creation of usable production materials from material previously considered unsuitable for production use. This is most often likely to represent a return to production of scrap material.

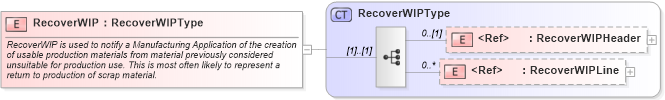

Collapse XSD Schema Diagram:
Drilldown into RecoverWIPLine in schema recoverwip_xsd Drilldown into RecoverWIPHeader in schema recoverwip_xsd Drilldown into RecoverWIPType in schema recoverwip_xsdXSD Diagram of RecoverWIP in schema recoverwip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="RecoverWIP" type="RecoverWIPType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">RecoverWIP is used to notify a Manufacturing Application of the creation of usable production materials from material previously considered unsuitable for production use. This is most often likely to represent a return to production of scrap material.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RecoverWIPHeader nsA:RecoverWIPHeader 0 (1)
RecoverWIPLine nsA:RecoverWIPLine 0 unbounded
Collapse Derivation Tree:
