Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ResponseVerbType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:VerbType
Containing Schema: Meta.xsd
Abstract True
Collapse XSD Schema Diagram:

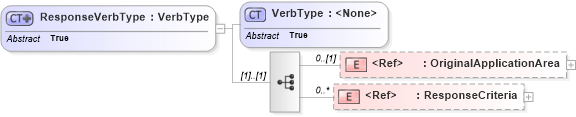

Drilldown into ResponseCriteria in schema meta_xsd Drilldown into OriginalApplicationArea in schema meta_xsd Drilldown into VerbType in schema meta_xsdXSD Diagram of ResponseVerbType in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ResponseVerbType" abstract="true">
    <xsd:complexContent>
        <xsd:extension base="VerbType">
            <xsd:sequence>
                <xsd:element ref="OriginalApplicationArea" minOccurs="0" />
                <xsd:element ref="ResponseCriteria" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginalApplicationArea nsA:OriginalApplicationArea 0 (1)
ResponseCriteria nsA:ResponseCriteria 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:AcknowledgeType, nsA:ConfirmType, nsA:RespondType, nsA:ShowType
