Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: RouteStop
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RouteStopType
Containing Schema: CarrierRoute.xsd
Abstract
Documentation:
Provides information pertaining to a particular pickup or delivery stop along the journey of a routed shipment. Each instance of the RouteStop pertains to a single physical destination shipping location and requires a subordinate ShipToParty.

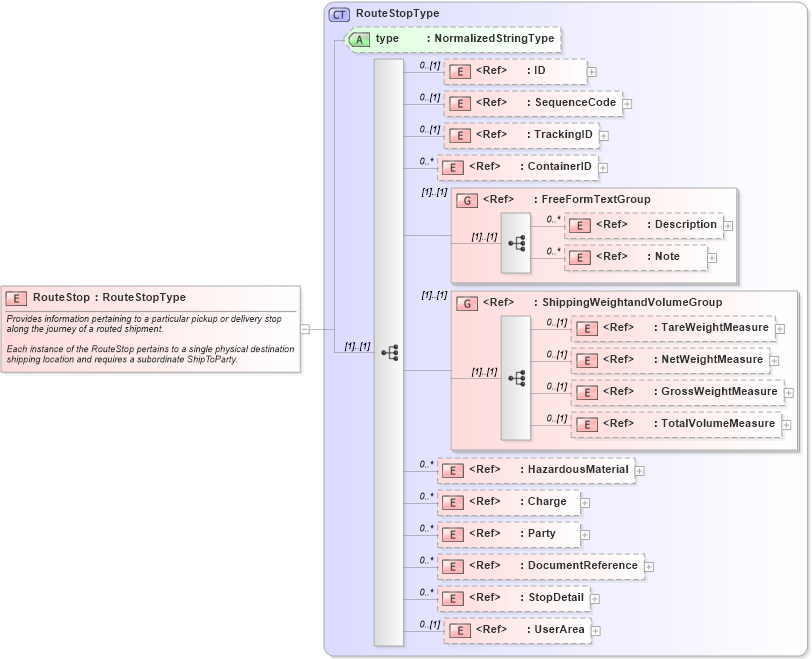

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StopDetail in schema carrierroute_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into Party in schema components_xsd Drilldown into Charge in schema components_xsd Drilldown into HazardousMaterial in schema components_xsd Drilldown into TotalVolumeMeasure in schema fields_xsd Drilldown into GrossWeightMeasure in schema fields_xsd Drilldown into NetWeightMeasure in schema fields_xsd Drilldown into TareWeightMeasure in schema fields_xsd Drilldown into ShippingWeightandVolumeGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ContainerID in schema fields_xsd Drilldown into TrackingID in schema fields_xsd Drilldown into SequenceCode in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into type in schema carrierroute_xsd Drilldown into RouteStopType in schema carrierroute_xsdXSD Diagram of RouteStop in schema carrierroute_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="RouteStop" type="RouteStopType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Provides information pertaining to a particular pickup or delivery stop along the journey of a routed shipment.

Each instance of the RouteStop pertains to a single physical destination shipping location and requires a subordinate ShipToParty.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
SequenceCode nsA:SequenceCode 0 (1)
TrackingID nsA:TrackingID 0 (1)
ContainerID nsA:ContainerID 0 unbounded
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
TareWeightMeasure nsA:TareWeightMeasure 0 (1)
NetWeightMeasure nsA:NetWeightMeasure 0 (1)
GrossWeightMeasure nsA:GrossWeightMeasure 0 (1)
TotalVolumeMeasure nsA:TotalVolumeMeasure 0 (1)
HazardousMaterial nsA:HazardousMaterial 0 unbounded
Charge nsA:Charge 0 unbounded
Party nsA:Party 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
StopDetail nsA:StopDetail 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ShippingWeightandVolumeGroup (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
