Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Routing
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:RoutingType
Containing Schema: Routing.xsd
Abstract
Documentation:
Routing is the description of all of the resources, steps, and activities associated with a path or routing associated with a manufacturing or production process. Typically, a routing contains people, machines, tooling, operations, and steps.

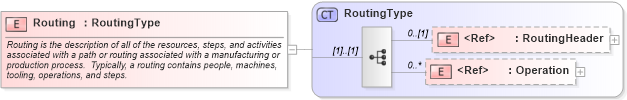

Collapse XSD Schema Diagram:
Drilldown into Operation in schema manufacturingcomponents_xsd Drilldown into RoutingHeader in schema routing_xsd Drilldown into RoutingType in schema routing_xsdXSD Diagram of Routing in schema routing_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Routing" type="RoutingType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Routing is the description of all of the resources, steps, and activities associated with a path or routing associated with a manufacturing or production process.  Typically, a routing contains people, machines, tooling, operations, and steps.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RoutingHeader nsA:RoutingHeader 0 (1)
Operation nsA:Operation 0 unbounded
Collapse Derivation Tree:
