Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: RoutingDisposition
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:StatusType
Containing Schema: Components.xsd
Abstract
Documentation:
This determines the receipt routing of an item or part. Examples of values include: Customer consignment, Inspection, Vendor consignment, Blocked Bonded, User defined Possible synonyms are Receipt Routing, Material Status, Material Condition Code

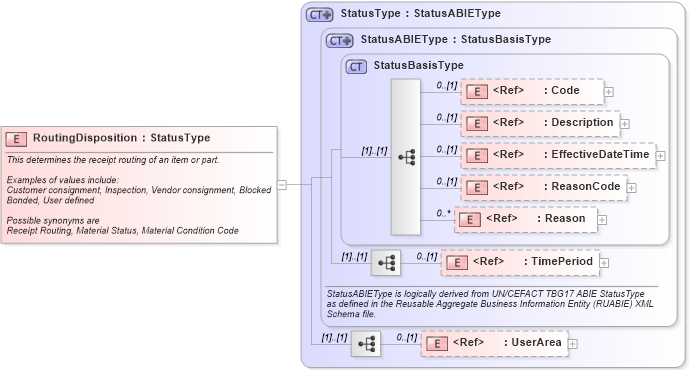

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TimePeriod in schema components_xsd Drilldown into Reason in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into EffectiveDateTime in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into Code in schema fields_xsd Drilldown into StatusBasisType in schema meta_xsd Drilldown into StatusABIEType in schema components_xsd Drilldown into StatusType in schema components_xsdXSD Diagram of RoutingDisposition in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="RoutingDisposition" type="StatusType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">This determines the receipt routing of an item or part.

Examples of values include:
Customer consignment, Inspection, Vendor consignment, Blocked
Bonded, User defined

Possible synonyms are
Receipt Routing, Material Status, Material Condition Code</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code nsA:Code 0 (1)
Description nsA:Description 0 (1)
EffectiveDateTime nsA:EffectiveDateTime 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
Reason nsA:Reason 0 unbounded
TimePeriod nsA:TimePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
