Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ScheduleException
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ScheduleExceptionType
Containing Schema: ManufacturingComponents.xsd
Abstract
Documentation:
Exception detail for Detail or Lline information.

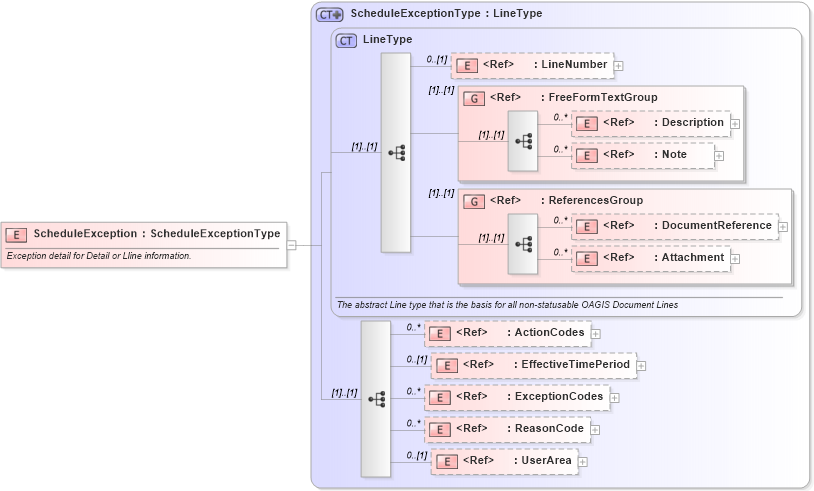

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into ExceptionCodes in schema components_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into ActionCodes in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into ScheduleExceptionType in schema manufacturingcomponents_xsdXSD Diagram of ScheduleException in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="ScheduleException" type="ScheduleExceptionType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Exception detail for Detail or Lline information.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
ActionCodes nsA:ActionCodes 0 unbounded
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
ExceptionCodes nsA:ExceptionCodes 0 unbounded
ReasonCode nsA:ReasonCode 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
