Definition Type: ComplexType
Name: SequenceScheduleEventType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: SequenceSchedule.xsd
Abstract
Documentation:
The Event represents date and time information for the associated Schedule Line(s). The date and time the detail lines of the sequence schedule are required to be delivered. This allows Sequence Lines to be grouped together by an Event and minimizes the amount of potential redundant data.

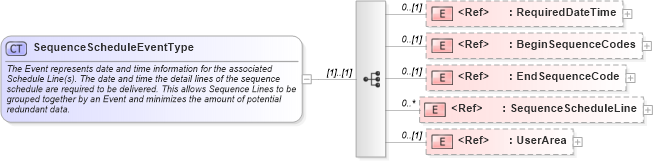

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SequenceScheduleLine in schema sequenceschedule_xsd Drilldown into EndSequenceCode in schema fields_xsd Drilldown into BeginSequenceCodes in schema components_xsd Drilldown into RequiredDateTime in schema fields_xsdXSD Diagram of SequenceScheduleEventType in schema sequenceschedule_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="SequenceScheduleEventType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">The Event represents date and time information for the associated Schedule Line(s). The date and time the detail lines of the sequence schedule are required to be delivered. This allows Sequence Lines to be grouped together by an Event and minimizes the amount of potential redundant data.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="RequiredDateTime" minOccurs="0" />
        <xsd:element ref="BeginSequenceCodes" minOccurs="0" />
        <xsd:element ref="EndSequenceCode" minOccurs="0" />
        <xsd:element ref="SequenceScheduleLine" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RequiredDateTime nsA:RequiredDateTime 0 (1)
BeginSequenceCodes nsA:BeginSequenceCodes 0 (1)
EndSequenceCode nsA:EndSequenceCode 0 (1)
SequenceScheduleLine nsA:SequenceScheduleLine 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:SequenceScheduleEvent
