Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SerializedLot
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SerializedLotType
Containing Schema: Components.xsd
Abstract
Documentation:
Is the Lot and Setial numbers for the items contained in the associated component by identifing the number of items and the uniques serial number of those items that belong to a given Lot.

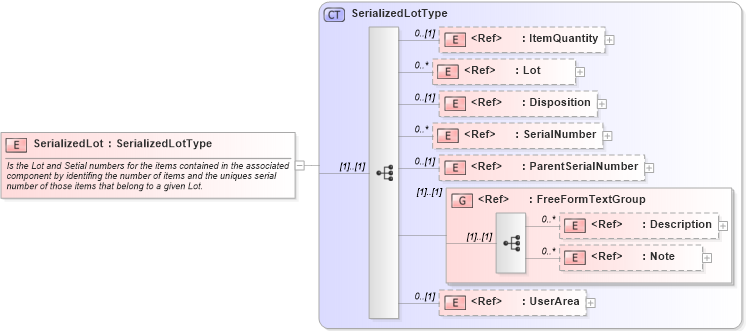

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ParentSerialNumber in schema fields_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into Disposition in schema components_xsd Drilldown into Lot in schema components_xsd Drilldown into ItemQuantity in schema fields_xsd Drilldown into SerializedLotType in schema components_xsdXSD Diagram of SerializedLot in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SerializedLot" type="SerializedLotType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Is the Lot and Setial numbers for the items contained in the associated component by identifing the number of items and the uniques serial number of those items that belong to a given Lot.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemQuantity nsA:ItemQuantity 0 (1)
Lot nsA:Lot 0 unbounded
Disposition nsA:Disposition 0 (1)
SerialNumber nsA:SerialNumber 0 unbounded
ParentSerialNumber nsA:ParentSerialNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
