Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ShopFloorControlActivityType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShopFloorControlResourceBaseType
Containing Schema: ConfirmWIP.xsd
Abstract

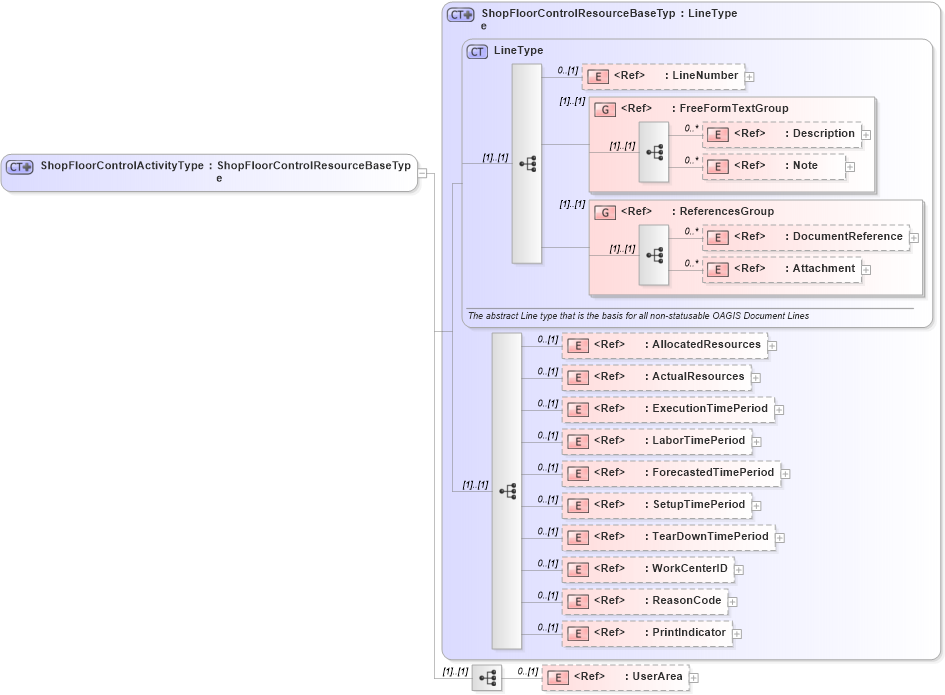

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into PrintIndicator in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into WorkCenterID in schema fields_xsd Drilldown into TearDownTimePeriod in schema components_xsd Drilldown into SetupTimePeriod in schema components_xsd Drilldown into ForecastedTimePeriod in schema components_xsd Drilldown into LaborTimePeriod in schema components_xsd Drilldown into ExecutionTimePeriod in schema components_xsd Drilldown into ActualResources in schema manufacturingcomponents_xsd Drilldown into AllocatedResources in schema manufacturingcomponents_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into ShopFloorControlResourceBaseType in schema confirmwip_xsdXSD Diagram of ShopFloorControlActivityType in schema confirmwip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ShopFloorControlActivityType">
    <xsd:complexContent>
        <xsd:extension base="ShopFloorControlResourceBaseType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
AllocatedResources nsA:AllocatedResources 0 (1)
ActualResources nsA:ActualResources 0 (1)
ExecutionTimePeriod nsA:ExecutionTimePeriod 0 (1)
LaborTimePeriod nsA:LaborTimePeriod 0 (1)
ForecastedTimePeriod nsA:ForecastedTimePeriod 0 (1)
SetupTimePeriod nsA:SetupTimePeriod 0 (1)
TearDownTimePeriod nsA:TearDownTimePeriod 0 (1)
WorkCenterID nsA:WorkCenterID 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
PrintIndicator nsA:PrintIndicator 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ShopFloorControlActivity
