Definition Type: ComplexType
Name: ShopFloorControlSublineType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ShopFloorControlLineBaseType
Containing Schema: ConfirmWIP.xsd
Abstract

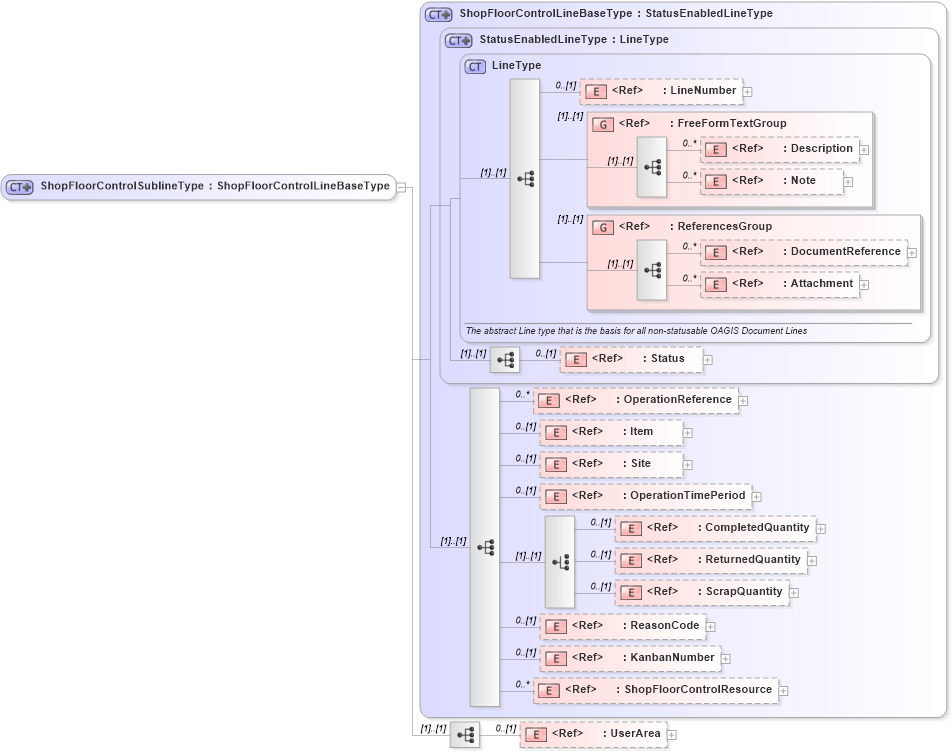

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ShopFloorControlResource in schema confirmwip_xsd Drilldown into KanbanNumber in schema fields_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into ScrapQuantity in schema fields_xsd Drilldown into ReturnedQuantity in schema fields_xsd Drilldown into CompletedQuantity in schema fields_xsd Drilldown into OperationTimePeriod in schema components_xsd Drilldown into Site in schema components_xsd Drilldown into Item in schema components_xsd Drilldown into OperationReference in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Attachment in schema components_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into ReferencesGroup in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into LineNumber in schema fields_xsd Drilldown into LineType in schema components_xsd Drilldown into StatusEnabledLineType in schema components_xsd Drilldown into ShopFloorControlLineBaseType in schema confirmwip_xsdXSD Diagram of ShopFloorControlSublineType in schema confirmwip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="ShopFloorControlSublineType">
    <xsd:complexContent>
        <xsd:extension base="ShopFloorControlLineBaseType">
            <xsd:sequence>
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumber nsA:LineNumber 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DocumentReference nsA:DocumentReference 0 unbounded
Attachment nsA:Attachment 0 unbounded
Status nsA:Status 0 (1)
OperationReference nsA:OperationReference 0 unbounded
Item nsA:Item 0 (1)
Site nsA:Site 0 (1)
OperationTimePeriod nsA:OperationTimePeriod 0 (1)
CompletedQuantity nsA:CompletedQuantity 0 (1)
ReturnedQuantity nsA:ReturnedQuantity 0 (1)
ScrapQuantity nsA:ScrapQuantity 0 (1)
ReasonCode nsA:ReasonCode 0 (1)
KanbanNumber nsA:KanbanNumber 0 (1)
ShopFloorControlResource nsA:ShopFloorControlResource 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:ReferencesGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:ShopFloorControlSubline
