Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: SplitWIPSource
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SplitWIPSource
Containing Schema: SplitWIP.xsd
Abstract
Documentation:
Information concerning the specific production order in the WIP Split transaction to be processed. This component specifies the source (parent) production order from which to perform the split transaction.

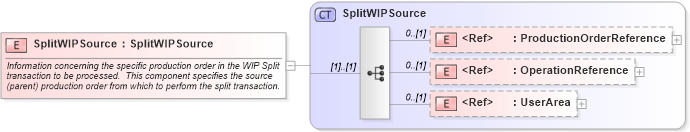

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into OperationReference in schema components_xsd Drilldown into ProductionOrderReference in schema components_xsd Drilldown into SplitWIPSource in schema splitwip_xsdXSD Diagram of SplitWIPSource in schema splitwip_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="SplitWIPSource" type="SplitWIPSource">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Information concerning the specific production order in the WIP Split transaction to be processed.  This component specifies the source (parent) production order from which to perform the split transaction.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ProductionOrderReference nsA:ProductionOrderReference 0 (1)
OperationReference nsA:OperationReference 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
