Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Sync
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:SyncType
Containing Schema: Meta.xsd
Abstract
Documentation:
The Sync verb is used when the owner of the data is passing or publishing that information or change in information to other software components. This is to be used when the receiver of the SyncBOD does not own the data. This verb is commonly used when mass changes are necessary or when a publish and subscribe mechanism is used in the integration architecture.The purposes of this verb include application integrity and ease of data entry for the business user by enabling a single point of input.

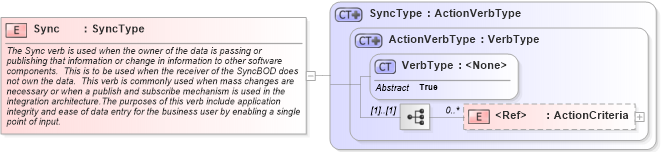

Collapse XSD Schema Diagram:
Drilldown into ActionCriteria in schema meta_xsd Drilldown into VerbType in schema meta_xsd Drilldown into ActionVerbType in schema meta_xsd Drilldown into SyncType in schema meta_xsdXSD Diagram of Sync in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Sync" type="SyncType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">The Sync verb is used when the owner of the data is passing or publishing that information or change in information to other software components.  This is to be used when the receiver of the SyncBOD does not own the data.  This verb is commonly used when mass changes are necessary or when a publish and subscribe mechanism is used in the integration architecture.The purposes of this verb include application integrity and ease of data entry for the business user by enabling a single point of input.  </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCriteria nsA:ActionCriteria 0 unbounded
Collapse Derivation Tree:
