Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: TermType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:TermABIEType
Containing Schema: Components.xsd
Abstract
Collapse XSD Schema Diagram:

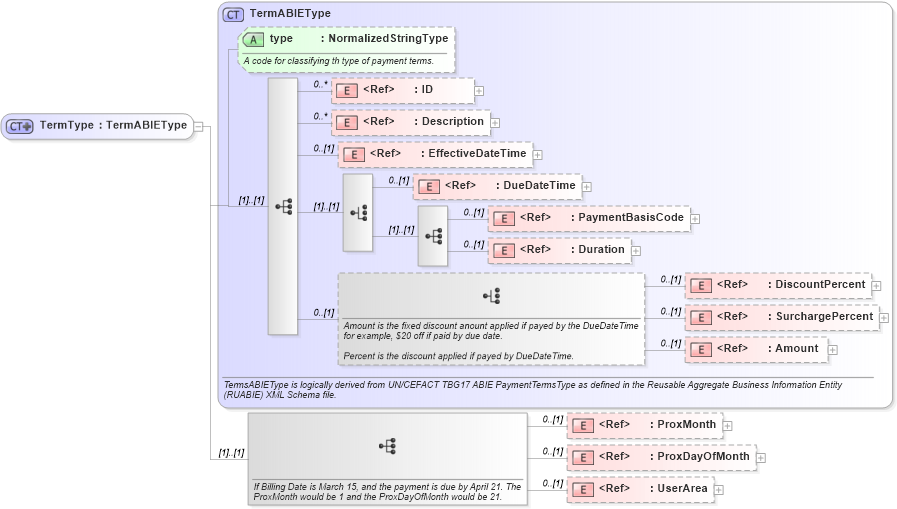

Drilldown into UserArea in schema fields_xsd Drilldown into ProxDayOfMonth in schema fields_xsd Drilldown into ProxMonth in schema fields_xsd Drilldown into Amount in schema fields_xsd Drilldown into SurchargePercent in schema fields_xsd Drilldown into DiscountPercent in schema fields_xsd Drilldown into Duration in schema fields_xsd Drilldown into PaymentBasisCode in schema fields_xsd Drilldown into DueDateTime in schema fields_xsd Drilldown into EffectiveDateTime in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into type in schema components_xsd Drilldown into TermABIEType in schema components_xsdXSD Diagram of TermType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="TermType">
    <xsd:complexContent>
        <xsd:extension base="TermABIEType">
            <xsd:sequence>
                <xsd:annotation>
                    <xsd:documentation>If Billing Date is March 15, and the payment is due by April 21. The ProxMonth would be 1 and the ProxDayOfMonth would be 21.</xsd:documentation>
                </xsd:annotation>
                <xsd:element ref="ProxMonth" minOccurs="0" />
                <xsd:element ref="ProxDayOfMonth" minOccurs="0" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
Description nsA:Description 0 unbounded
EffectiveDateTime nsA:EffectiveDateTime 0 (1)
DueDateTime nsA:DueDateTime 0 (1)
PaymentBasisCode nsA:PaymentBasisCode 0 (1)
Duration nsA:Duration 0 (1)
DiscountPercent nsA:DiscountPercent 0 (1)
SurchargePercent nsA:SurchargePercent 0 (1)
Amount nsA:Amount 0 (1)
ProxMonth nsA:ProxMonth 0 (1)
ProxDayOfMonth nsA:ProxDayOfMonth 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Discount, nsA:Penalty, nsA:Term
