Definition Type: ComplexType
Name: UOMGroupType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: UOMGroup.xsd
Abstract
Documentation:
Unit-of-Measure conversion flexibility permits alternate UOMs to be defined in terms relative to the ITEM's stocking UOM or relative to other alternate UOMs. Note that these conditions further require the first alternate UOM occurrence to always be expressed in terms relative to the stocking UOM. This declaration methodology permits applications to construct a linked UOM conversion hierarchy and calculate a conversion factor between any given alternate and stocking UOM. The Multiplier Specifies both the quantity and UOM which are equivalent to the alternate Unit-of-Measure. The value of the MultiplierQuantity compound may be any whole or fractional numeric value. The UOM field within the MultiplierQuantity compound must contain either one of the following values: The ITEM's stocking UOM (as declared in the UOMGroup Header Component) or a previously declared alternate UOM.

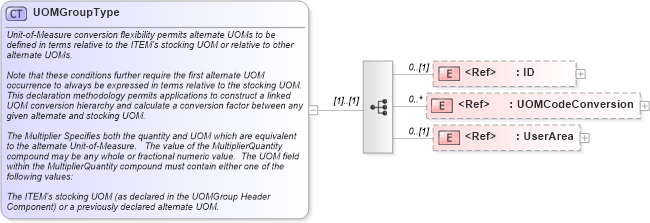

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into UOMCodeConversion in schema components_xsd Drilldown into ID in schema fields_xsdXSD Diagram of UOMGroupType in schema uomgroup_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="UOMGroupType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9">Unit-of-Measure conversion flexibility permits alternate UOMs to be defined in terms relative to the ITEM's stocking UOM or relative to other alternate UOMs.

Note that these conditions further require the first alternate UOM occurrence to always be expressed in terms relative to the stocking UOM.  This declaration methodology permits applications to construct a linked UOM conversion hierarchy and calculate a conversion factor between any given alternate and stocking UOM.

The Multiplier Specifies both the quantity and UOM which are equivalent to the alternate Unit-of-Measure.   The value of the MultiplierQuantity compound may be any whole or fractional numeric value.  The UOM field within the MultiplierQuantity compound must contain either one of the following values:

The ITEM's stocking UOM (as declared in the UOMGroup Header Component) or a previously declared alternate UOM.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="UOMCodeConversion" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
UOMCodeConversion nsA:UOMCodeConversion 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:UOMGroup
