Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Update
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:UpdateType
Containing Schema: Meta.xsd
Abstract
Documentation:
The Update verb is used to describe specific processing in a more fine-grained manner beyond add, change or delete processing. An example is the update of inspection information from one business application to another. The event is not adding a document, or changing fields per se, it is communicating the occurrence of an event as well as the corresponding data that accompanies the event.

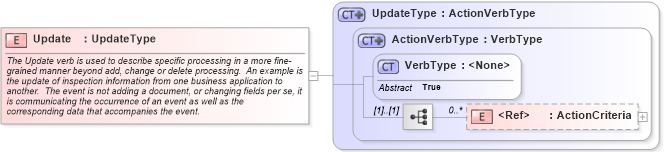

Collapse XSD Schema Diagram:
Drilldown into ActionCriteria in schema meta_xsd Drilldown into VerbType in schema meta_xsd Drilldown into ActionVerbType in schema meta_xsd Drilldown into UpdateType in schema meta_xsdXSD Diagram of Update in schema meta_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Update" type="UpdateType">
    <xsd:annotation>
        <xsd:documentation source="http://www.openapplications.org/oagis/9.0">The Update verb is used to describe specific processing in a more fine-grained manner beyond add, change or delete processing.  An example is the update of inspection information from one business application to another.  The event is not adding a document, or changing fields per se, it is communicating the occurrence of an event as well as the corresponding data that accompanies the event.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ActionCriteria nsA:ActionCriteria 0 unbounded
Collapse Derivation Tree:
