<xsd:element name="auditeventpolicy_test" substitutionGroup="oval:test">
<xsd:annotation>
<xsd:documentation>The auditeventpolicy test enumerates the different types of events the system should audit. The defined values are found in window's POLICY_AUDIT_EVENT_TYPE enumeration and accessed through the LsaQueryInformationPolicy when the InformationClass parameters are set to PolicyAuditEventsInformation.</xsd:documentation>
<xsd:appinfo>
<test_name>Audit Event Policy Test</test_name>
<extends>standardTestType</extends>
<valid_sections>notes, data</valid_sections>
<example>
<auditeventpolicy_test id="wbt-0" check="all" comment="test certain event policies" xmlns="http://oval.mitre.org/XMLSchema/oval#windows">
<oval:notes xmlns:oval="http://oval.mitre.org/XMLSchema/oval">
<oval:note>This is an example test written under version 4 of the OVAL schema. It is meant to give a short overview of the test and might not contain every possible child element.</oval:note>
</oval:notes>
<data operation="AND">
<account_logon>AUDIT_FAILURE</account_logon>
<directory_service_access>AUDIT_SUCCESS_FAILURE</directory_service_access>
</data>
</auditeventpolicy_test>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:standardTestType">
<xsd:sequence>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:dataType">
<xsd:sequence>
<xsd:element name="account_logon" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to log on to or log off of the system. Also, audit attempts to make a network connection.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="account_management" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to create, delete, or change user or group accounts. Also, audit password changes.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="detailed_tracking" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit specific events, such as program activation, some forms of handle duplication, indirect access to an object, and process exit. </xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="directory_service_access" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to access the directory service.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="logon" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to log on to or log off of the system. Also, audit attempts to make a network connection.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="object_access" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to access securable objects, such as files.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="policy_change" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to change Policy object rules. </xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="privilege_use" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to use privileges.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="system" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Audit attempts to shut down or restart the computer. Also, audit events that affect system security or the security log.</xsd:documentation>
<xsd:appinfo>
<parent_test>Audit Event Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

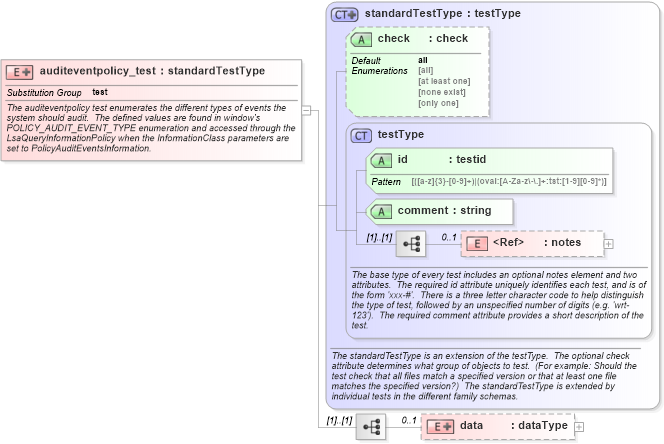

XSD Schema Diagram:
