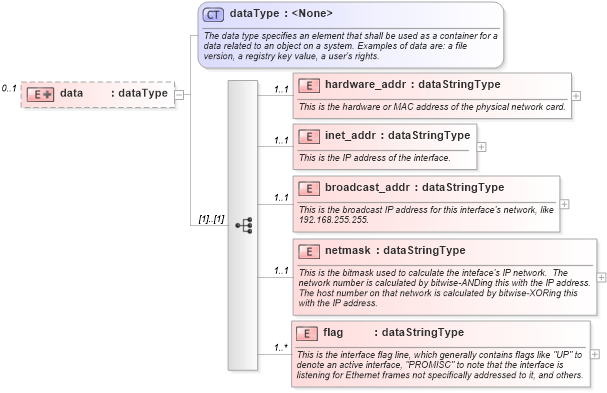

<xsd:element name="data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="system_characteristics:dataType">
                <xsd:sequence>
                    <xsd:element name="hardware_addr" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the hardware or MAC address of the physical network card.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Interface Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="inet_addr" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the IP address of the interface.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Interface Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="broadcast_addr" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the broadcast IP address for this interface's network, like 192.168.255.255.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Interface Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="netmask" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the bitmask used to calculate the inteface's IP network.  The network number is calculated by bitwise-ANDing this with the IP address.  The host number on that network is calculated by bitwise-XORing this with the IP address.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Interface Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="flag" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation>This is the interface flag line, which generally contains flags like "UP" to denote an active interface, "PROMISC" to note that the interface is listening for Ethernet frames not specifically addressed to it, and others.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Interface Item</parent_item>
                                <cardinality>1-n</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>

• system_characteristics:dataType
  • data
