Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: data
Namespace: http://oval.mitre.org/XMLSchema/system_characteristics#windows
Type: system_characteristics:dataType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

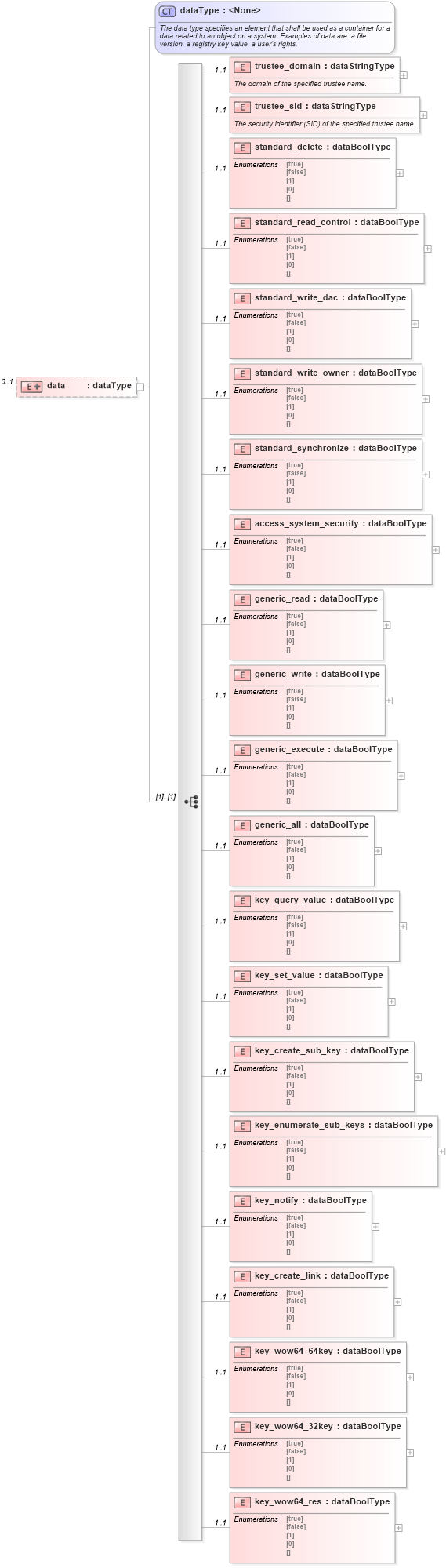

Collapse XSD Schema Diagram:
Drilldown into key_wow64_res in schema windows-system-characteristics-schema_xsd Drilldown into key_wow64_32key in schema windows-system-characteristics-schema_xsd Drilldown into key_wow64_64key in schema windows-system-characteristics-schema_xsd Drilldown into key_create_link in schema windows-system-characteristics-schema_xsd Drilldown into key_notify in schema windows-system-characteristics-schema_xsd Drilldown into key_enumerate_sub_keys in schema windows-system-characteristics-schema_xsd Drilldown into key_create_sub_key in schema windows-system-characteristics-schema_xsd Drilldown into key_set_value in schema windows-system-characteristics-schema_xsd Drilldown into key_query_value in schema windows-system-characteristics-schema_xsd Drilldown into generic_all in schema windows-system-characteristics-schema_xsd Drilldown into generic_execute in schema windows-system-characteristics-schema_xsd Drilldown into generic_write in schema windows-system-characteristics-schema_xsd Drilldown into generic_read in schema windows-system-characteristics-schema_xsd Drilldown into access_system_security in schema windows-system-characteristics-schema_xsd Drilldown into standard_synchronize in schema windows-system-characteristics-schema_xsd Drilldown into standard_write_owner in schema windows-system-characteristics-schema_xsd Drilldown into standard_write_dac in schema windows-system-characteristics-schema_xsd Drilldown into standard_read_control in schema windows-system-characteristics-schema_xsd Drilldown into standard_delete in schema windows-system-characteristics-schema_xsd Drilldown into trustee_sid in schema windows-system-characteristics-schema_xsd Drilldown into trustee_domain in schema windows-system-characteristics-schema_xsd Drilldown into dataType in schema system-characteristics-schema_xsdXSD Diagram of data in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="system_characteristics:dataType">
                <xsd:sequence>
                    <xsd:element name="trustee_domain" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The domain of the specified trustee name.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="trustee_sid" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The security identifier (SID) of the specified trustee name.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_delete" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_read_control" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_write_dac" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_write_owner" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_synchronize" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="access_system_security" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_read" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_write" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_execute" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_all" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_query_value" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_set_value" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_create_sub_key" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_enumerate_sub_keys" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_notify" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_create_link" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_wow64_64key" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_wow64_32key" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_wow64_res" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_item>Regkey Effective Rights Item</parent_item>
                                <cardinality>1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
trustee_domain windows:trustee_domain 1 1
trustee_sid windows:trustee_sid 1 1
standard_delete windows:standard_delete 1 1
standard_read_control windows:standard_read_control 1 1
standard_write_dac windows:standard_write_dac 1 1
standard_write_owner windows:standard_write_owner 1 1
standard_synchronize windows:standard_synchronize 1 1
access_system_security windows:access_system_security 1 1
generic_read windows:generic_read 1 1
generic_write windows:generic_write 1 1
generic_execute windows:generic_execute 1 1
generic_all windows:generic_all 1 1
key_query_value windows:key_query_value 1 1
key_set_value windows:key_set_value 1 1
key_create_sub_key windows:key_create_sub_key 1 1
key_enumerate_sub_keys windows:key_enumerate_sub_keys 1 1
key_notify windows:key_notify 1 1
key_create_link windows:key_create_link 1 1
key_wow64_64key windows:key_wow64_64key 1 1
key_wow64_32key windows:key_wow64_32key 1 1
key_wow64_res windows:key_wow64_res 1 1
Collapse Derivation Tree:
