<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:dataType">
<xsd:sequence>
<xsd:element name="type" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the type of data stored by the registry key.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:simpleContent>
<xsd:restriction base="oval:subtestStringType">
<xsd:enumeration value="reg_binary" />
<xsd:enumeration value="reg_dword" />
<xsd:enumeration value="reg_expand_sz" />
<xsd:enumeration value="reg_multi_sz" />
<xsd:enumeration value="reg_qword" />
<xsd:enumeration value="reg_sz" />
</xsd:restriction>
</xsd:simpleContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="value" type="oval:subtestStringType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The actual value of the specified registry key.</xsd:documentation>
<xsd:appinfo>
<parent_test>Registry Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>binary, boolean, float, int, string</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal, bitwise and, bitwise or, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

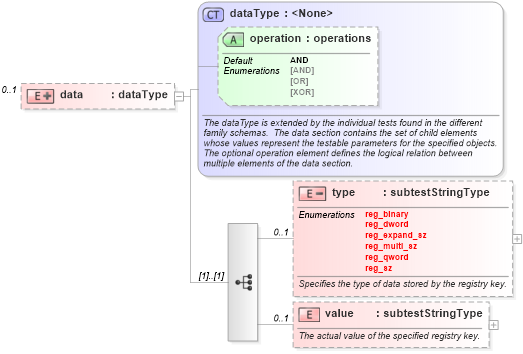

XSD Schema Diagram:
