Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: definition_data
Namespace: http://oval.mitre.org/XMLSchema/oval_results#macos
Type: oval_results:definitionDataType
Containing Schema: macos-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

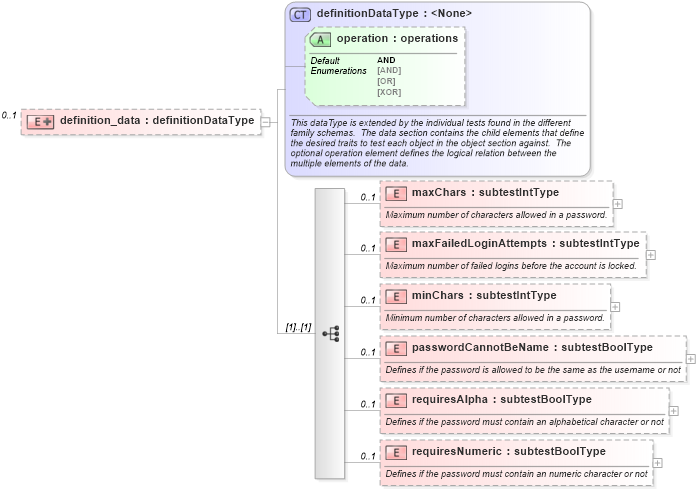

Collapse XSD Schema Diagram:
Drilldown into requiresNumeric in schema macos-oval-results-schema_xsd Drilldown into requiresAlpha in schema macos-oval-results-schema_xsd Drilldown into passwordCannotBeName in schema macos-oval-results-schema_xsd Drilldown into minChars in schema macos-oval-results-schema_xsd Drilldown into maxFailedLoginAttempts in schema macos-oval-results-schema_xsd Drilldown into maxChars in schema macos-oval-results-schema_xsd Drilldown into operation in schema oval-results-schema_xsd Drilldown into definitionDataType in schema oval-results-schema_xsdXSD Diagram of definition_data in schema macos-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="definition_data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionDataType">
                <xsd:sequence>
                    <xsd:element name="maxChars" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Maximum number of characters allowed in a password.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Pw Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="maxFailedLoginAttempts" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Maximum number of failed logins before the account is locked.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Pw Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>exists, none exists, equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="minChars" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Minimum number of characters allowed in a password.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Pw Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="passwordCannotBeName" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Defines if the password is allowed to be the same as the username or not</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Pw Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equals</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="requiresAlpha" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Defines if the password must contain an alphabetical character or not</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Pw Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equals</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="requiresNumeric" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Defines if the password must contain an numeric character or not</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Pw Policy Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equals</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
maxChars macos:maxChars 0 1
maxFailedLoginAttempts macos:maxFailedLoginAttempts 0 1
minChars macos:minChars 0 1
passwordCannotBeName macos:passwordCannotBeName 0 1
requiresAlpha macos:requiresAlpha 0 1
requiresNumeric macos:requiresNumeric 0 1
Collapse Child Attributes:
Name Type Default Value Use
operation oval_results:operation AND Optional
Collapse Derivation Tree:
