Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: definition_data
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:definitionDataType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

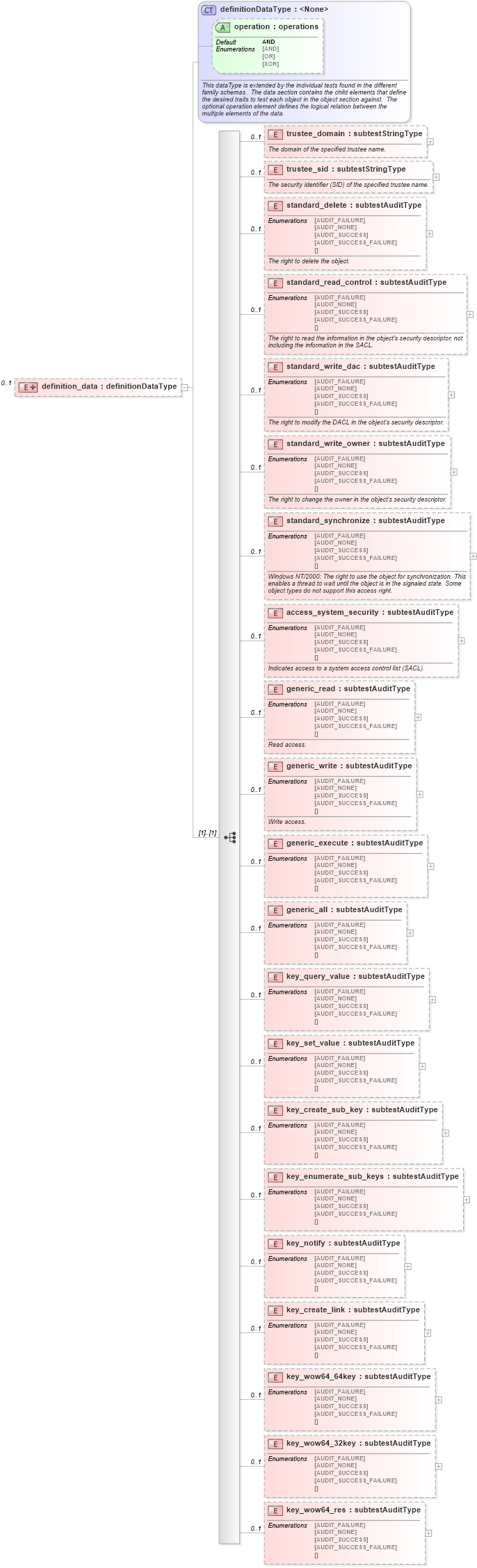

Collapse XSD Schema Diagram:
Drilldown into key_wow64_res in schema windows-oval-results-schema_xsd Drilldown into key_wow64_32key in schema windows-oval-results-schema_xsd Drilldown into key_wow64_64key in schema windows-oval-results-schema_xsd Drilldown into key_create_link in schema windows-oval-results-schema_xsd Drilldown into key_notify in schema windows-oval-results-schema_xsd Drilldown into key_enumerate_sub_keys in schema windows-oval-results-schema_xsd Drilldown into key_create_sub_key in schema windows-oval-results-schema_xsd Drilldown into key_set_value in schema windows-oval-results-schema_xsd Drilldown into key_query_value in schema windows-oval-results-schema_xsd Drilldown into generic_all in schema windows-oval-results-schema_xsd Drilldown into generic_execute in schema windows-oval-results-schema_xsd Drilldown into generic_write in schema windows-oval-results-schema_xsd Drilldown into generic_read in schema windows-oval-results-schema_xsd Drilldown into access_system_security in schema windows-oval-results-schema_xsd Drilldown into standard_synchronize in schema windows-oval-results-schema_xsd Drilldown into standard_write_owner in schema windows-oval-results-schema_xsd Drilldown into standard_write_dac in schema windows-oval-results-schema_xsd Drilldown into standard_read_control in schema windows-oval-results-schema_xsd Drilldown into standard_delete in schema windows-oval-results-schema_xsd Drilldown into trustee_sid in schema windows-oval-results-schema_xsd Drilldown into trustee_domain in schema windows-oval-results-schema_xsd Drilldown into operation in schema oval-results-schema_xsd Drilldown into definitionDataType in schema oval-results-schema_xsdXSD Diagram of definition_data in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="definition_data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionDataType">
                <xsd:sequence>
                    <xsd:element name="trustee_domain" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The domain of the specified trustee name.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="trustee_sid" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The security identifier (SID) of the specified trustee name.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_delete" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The right to delete the object.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_read_control" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The right to read the information in the object's security descriptor, not including the information in the SACL.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_write_dac" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The right to modify the DACL in the object's security descriptor.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_write_owner" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>The right to change the owner in the object's security descriptor.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="standard_synchronize" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Windows NT/2000: The right to use the object for synchronization. This enables a thread to wait until the object is in the signaled state. Some object types do not support this access right.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="access_system_security" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Indicates access to a system access control list (SACL).</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_read" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Read access.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_write" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>Write access.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_execute" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="generic_all" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_query_value" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_set_value" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_create_sub_key" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_enumerate_sub_keys" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_notify" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_create_link" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_wow64_64key" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_wow64_32key" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="key_wow64_res" type="windows:subtestAuditType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Regkey Audited Permissions Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
trustee_domain windows:trustee_domain 0 1
trustee_sid windows:trustee_sid 0 1
standard_delete windows:standard_delete 0 1
standard_read_control windows:standard_read_control 0 1
standard_write_dac windows:standard_write_dac 0 1
standard_write_owner windows:standard_write_owner 0 1
standard_synchronize windows:standard_synchronize 0 1
access_system_security windows:access_system_security 0 1
generic_read windows:generic_read 0 1
generic_write windows:generic_write 0 1
generic_execute windows:generic_execute 0 1
generic_all windows:generic_all 0 1
key_query_value windows:key_query_value 0 1
key_set_value windows:key_set_value 0 1
key_create_sub_key windows:key_create_sub_key 0 1
key_enumerate_sub_keys windows:key_enumerate_sub_keys 0 1
key_notify windows:key_notify 0 1
key_create_link windows:key_create_link 0 1
key_wow64_64key windows:key_wow64_64key 0 1
key_wow64_32key windows:key_wow64_32key 0 1
key_wow64_res windows:key_wow64_res 0 1
Collapse Child Attributes:
Name Type Default Value Use
operation oval_results:operation AND Optional
Collapse Derivation Tree:
