Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: definition_data
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:definitionDataType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

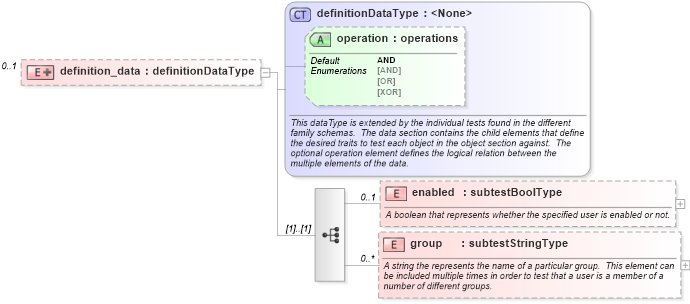

Collapse XSD Schema Diagram:
Drilldown into group in schema windows-oval-results-schema_xsd Drilldown into enabled in schema windows-oval-results-schema_xsd Drilldown into operation in schema oval-results-schema_xsd Drilldown into definitionDataType in schema oval-results-schema_xsdXSD Diagram of definition_data in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="definition_data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionDataType">
                <xsd:sequence>
                    <xsd:element name="enabled" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>A boolean that represents whether the specified user is enabled or not.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>User Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="group" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="unbounded">
                        <xsd:annotation>
                            <xsd:documentation>A string the represents the name of a particular group.  This element can be included multiple times in order to test that a user is a member of a number of different groups.</xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>User Test</parent_test>
                                <cardinality>0-n</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
enabled windows:enabled 0 1
group windows:group 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
operation oval_results:operation AND Optional
Collapse Derivation Tree:
