Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: definition_data
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:definitionDataType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract

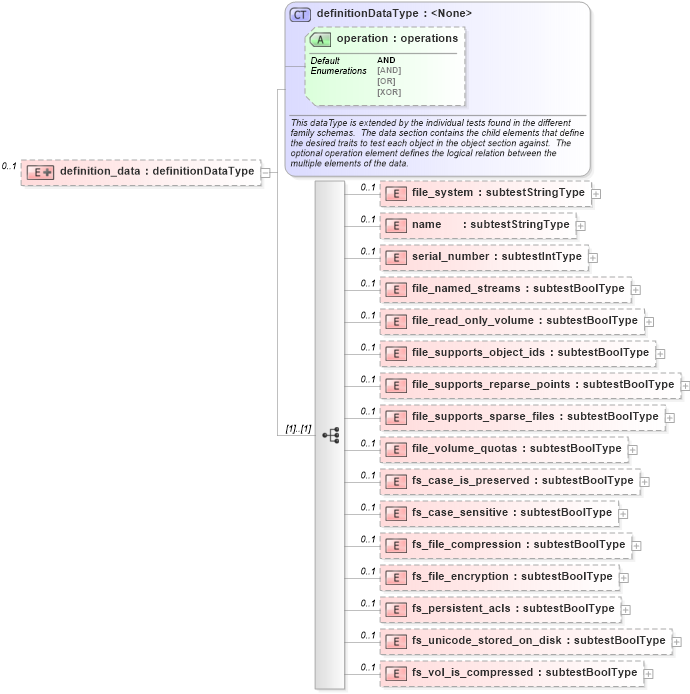

Collapse XSD Schema Diagram:
Drilldown into fs_vol_is_compressed in schema windows-oval-results-schema_xsd Drilldown into fs_unicode_stored_on_disk in schema windows-oval-results-schema_xsd Drilldown into fs_persistent_acls in schema windows-oval-results-schema_xsd Drilldown into fs_file_encryption in schema windows-oval-results-schema_xsd Drilldown into fs_file_compression in schema windows-oval-results-schema_xsd Drilldown into fs_case_sensitive in schema windows-oval-results-schema_xsd Drilldown into fs_case_is_preserved in schema windows-oval-results-schema_xsd Drilldown into file_volume_quotas in schema windows-oval-results-schema_xsd Drilldown into file_supports_sparse_files in schema windows-oval-results-schema_xsd Drilldown into file_supports_reparse_points in schema windows-oval-results-schema_xsd Drilldown into file_supports_object_ids in schema windows-oval-results-schema_xsd Drilldown into file_read_only_volume in schema windows-oval-results-schema_xsd Drilldown into file_named_streams in schema windows-oval-results-schema_xsd Drilldown into serial_number in schema windows-oval-results-schema_xsd Drilldown into name in schema windows-oval-results-schema_xsd Drilldown into file_system in schema windows-oval-results-schema_xsd Drilldown into operation in schema oval-results-schema_xsd Drilldown into definitionDataType in schema oval-results-schema_xsdXSD Diagram of definition_data in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="definition_data" minOccurs="0" maxOccurs="1">
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval_results:definitionDataType">
                <xsd:sequence>
                    <xsd:element name="file_system" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="name" type="oval_results:subtestStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>string</content>
                                <valid_datatypes>string</valid_datatypes>
                                <valid_operators>equals, not equal, pattern match</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="serial_number" type="oval_results:subtestIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>integer</content>
                                <valid_datatypes>integer</valid_datatypes>
                                <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="file_named_streams" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="file_read_only_volume" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="file_supports_object_ids" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="file_supports_reparse_points" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="file_supports_sparse_files" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="file_volume_quotas" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_case_is_preserved" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_case_sensitive" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_file_compression" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_file_encryption" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_persistent_acls" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_unicode_stored_on_disk" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="fs_vol_is_compressed" type="oval_results:subtestBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>
                            </xsd:documentation>
                            <xsd:appinfo>
                                <parent_test>Volume Test</parent_test>
                                <cardinality>0-1</cardinality>
                                <content>boolean</content>
                                <valid_datatypes>boolean</valid_datatypes>
                                <valid_operators>equals, not equal</valid_operators>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
file_system windows:file_system 0 1
name windows:name 0 1
serial_number windows:serial_number 0 1
file_named_streams windows:file_named_streams 0 1
file_read_only_volume windows:file_read_only_volume 0 1
file_supports_object_ids windows:file_supports_object_ids 0 1
file_supports_reparse_points windows:file_supports_reparse_points 0 1
file_supports_sparse_files windows:file_supports_sparse_files 0 1
file_volume_quotas windows:file_volume_quotas 0 1
fs_case_is_preserved windows:fs_case_is_preserved 0 1
fs_case_sensitive windows:fs_case_sensitive 0 1
fs_file_compression windows:fs_file_compression 0 1
fs_file_encryption windows:fs_file_encryption 0 1
fs_persistent_acls windows:fs_persistent_acls 0 1
fs_unicode_stored_on_disk windows:fs_unicode_stored_on_disk 0 1
fs_vol_is_compressed windows:fs_vol_is_compressed 0 1
Collapse Child Attributes:
Name Type Default Value Use
operation oval_results:operation AND Optional
Collapse Derivation Tree:
