<xsd:element name="fileeffectiverights_item" substitutionGroup="system_characteristics:item">
<xsd:annotation>
<xsd:documentation>This item stores the effective rights of a file that a discretionary access control list (DACL) structure grants to a specified trustee. The trustee's effective rights are determined checking all access-allowed and access-denied access control entries (ACEs) in the DACL. For help with this test see the GetEffectiveRightsFromAcl() api.</xsd:documentation>
<xsd:appinfo>
<item_name>File Effective Rights Item</item_name>
<extends>itemType</extends>
<valid_sections>message, object, data</valid_sections>
<example>
<fileeffectiverights_item id="2">
<object>
<path>C:\WINDOWS\system32\mshtml.dll</path>
<trustee_name datatype="string" status="exists">SYSTEM</trustee_name>
</object>
<data>
<trustee_domain datatype="string" status="exists">NT AUTHORITY</trustee_domain>
<trustee_sid datatype="string" status="exists">S-1-5-18</trustee_sid>
<standard_delete datatype="boolean" status="exists">0</standard_delete>
<standard_read_control datatype="boolean" status="exists">0</standard_read_control>
<standard_write_dac datatype="boolean" status="exists">0</standard_write_dac>
<standard_write_owner datatype="boolean" status="exists">0</standard_write_owner>
<standard_synchronize datatype="boolean" status="exists">0</standard_synchronize>
<access_system_security datatype="boolean" status="exists">1</access_system_security>
<generic_read datatype="boolean" status="exists">1</generic_read>
<generic_write datatype="boolean" status="exists">1</generic_write>
<generic_execute datatype="boolean" status="exists">1</generic_execute>
<generic_all datatype="boolean" status="exists">1</generic_all>
<file_read_data datatype="boolean" status="exists">0</file_read_data>
<file_write_data datatype="boolean" status="exists">0</file_write_data>
<file_append_data datatype="boolean" status="exists">0</file_append_data>
<file_read_ea datatype="boolean" status="exists">0</file_read_ea>
<file_write_ea datatype="boolean" status="exists">0</file_write_ea>
<file_execute datatype="boolean" status="exists">0</file_execute>
<file_delete_child datatype="boolean" status="exists">0</file_delete_child>
<file_read_attributes datatype="boolean" status="exists">0</file_read_attributes>
<file_write_attributes datatype="boolean" status="exists">0</file_write_attributes>
</data>
</fileeffectiverights_item>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:itemType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:objectType">
<xsd:sequence>
<xsd:element name="path" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element specifies the absolute path to a file on the machine from which the DACL was retrieved.</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>none</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="trustee_name" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element specifies the trustee name associated with this particular DACL. A trustee can be a user, group, or program (such as a Windows service)</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:dataType">
<xsd:sequence>
<xsd:element name="trustee_domain" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The domain of the specified trustee name.</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="trustee_sid" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>The security identifier (SID) of the specified trustee name.</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_delete" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_read_control" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_write_dac" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_write_owner" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="standard_synchronize" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="access_system_security" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_read" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_write" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_execute" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="generic_all" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_read_data" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_write_data" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_append_data" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_read_ea" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_write_ea" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_execute" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_delete_child" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_read_attributes" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="file_write_attributes" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>File Effective Rights Item</parent_item>
<cardinality>1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

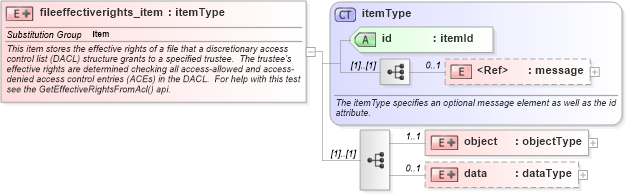

XSD Schema Diagram:
