Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: group_item
Namespace: http://oval.mitre.org/XMLSchema/system_characteristics#windows
Type: system_characteristics:itemType
Containing Schema: windows-system-characteristics-schema.xsd
Abstract
Documentation:
The windows group item allows the different users that belong to specific groups be collected. Note that the user element can appear an unlimited number of times. If no user is found in the specified group, or if there is an error determining the users of a group, then a single user element should be included that reports this error.

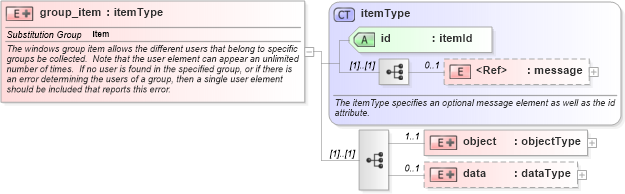

Collapse XSD Schema Diagram:
Drilldown into data in schema windows-system-characteristics-schema_xsd Drilldown into object in schema windows-system-characteristics-schema_xsd Drilldown into message in schema system-characteristics-schema_xsd Drilldown into id in schema system-characteristics-schema_xsd Drilldown into itemType in schema system-characteristics-schema_xsdXSD Diagram of group_item in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="group_item" substitutionGroup="system_characteristics:item">
    <xsd:annotation>
        <xsd:documentation>The windows group item allows the different users that belong to specific groups be collected.  Note that the user element can appear an unlimited number of times.  If no user is found in the specified group, or if there is an error determining the users of a group, then a single user element should be included that reports this error.</xsd:documentation>
        <xsd:appinfo>
            <item_name>Group Item</item_name>
            <extends>itemType</extends>
            <valid_sections>message, object, data</valid_sections>
            <example>
            </example>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="system_characteristics:itemType">
                <xsd:sequence>
                    <xsd:element name="object" minOccurs="1" maxOccurs="1">
                        <xsd:complexType>
                            <xsd:complexContent>
                                <xsd:extension base="system_characteristics:objectType">
                                    <xsd:sequence>
                                        <xsd:element name="group" type="system_characteristics:objectStringType" minOccurs="1" maxOccurs="1">
                                            <xsd:annotation>
                                                <xsd:documentation>A string the represents the name of a particular group.</xsd:documentation>
                                                <xsd:appinfo>
                                                    <parent_item>group_item</parent_item>
                                                    <cardinality>1</cardinality>
                                                    <content>string</content>
                                                </xsd:appinfo>
                                            </xsd:annotation>
                                        </xsd:element>
                                    </xsd:sequence>
                                </xsd:extension>
                            </xsd:complexContent>
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:element name="data" minOccurs="0" maxOccurs="1">
                        <xsd:complexType>
                            <xsd:complexContent>
                                <xsd:extension base="system_characteristics:dataType">
                                    <xsd:sequence>
                                        <xsd:element name="enabled" type="system_characteristics:dataBoolType" minOccurs="1" maxOccurs="1">
                                            <xsd:annotation>
                                                <xsd:documentation>A boolean that represents whether the particular group is enabled or not.</xsd:documentation>
                                                <xsd:appinfo>
                                                    <parent_item>group_item</parent_item>
                                                    <cardinality>1</cardinality>
                                                    <content>boolean</content>
                                                    <valid_datatypes>boolean</valid_datatypes>
                                                </xsd:appinfo>
                                            </xsd:annotation>
                                        </xsd:element>
                                        <xsd:element name="user" type="system_characteristics:dataStringType" minOccurs="1" maxOccurs="unbounded">
                                            <xsd:annotation>
                                                <xsd:documentation>A string that represents the name of a particular user.</xsd:documentation>
                                                <xsd:appinfo>
                                                    <parent_item>group_item</parent_item>
                                                    <cardinality>1-n</cardinality>
                                                    <content>string</content>
                                                    <valid_datatypes>string</valid_datatypes>
                                                </xsd:appinfo>
                                            </xsd:annotation>
                                        </xsd:element>
                                    </xsd:sequence>
                                </xsd:extension>
                            </xsd:complexContent>
                        </xsd:complexType>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message system_characteristics:message 0 1
object windows:object 1 1
data windows:data 0 1
Collapse Child Attributes:
Name Type Default Value Use
id system_characteristics:id Required
Collapse Derivation Tree:
Collapse References:
system_characteristics:item
