Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: id
Namespace: http://oval.mitre.org/XMLSchema/oval#windows
Type: oval:subtestIntType
Containing Schema: windows-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
The id element specifies a particular object under the metabase key. If nillable is set to true, then the id element should be ignored during analysis.

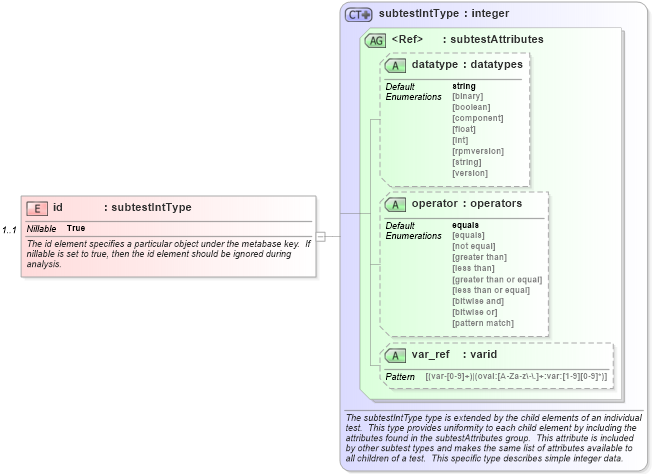

Collapse XSD Schema Diagram:
Drilldown into var_ref in schema oval-schema_xsd Drilldown into operator in schema oval-schema_xsd Drilldown into datatype in schema oval-schema_xsd Drilldown into subtestAttributes in schema oval-schema_xsd Drilldown into subtestIntType in schema oval-schema_xsdXSD Diagram of id in schema windows-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="id" type="oval:subtestIntType" minOccurs="1" maxOccurs="1" nillable="true">
    <xsd:annotation>
        <xsd:documentation>The id element specifies a particular object under the metabase key.  If nillable is set to true, then the id element should be ignored during analysis.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Metabase Test</parent_test>
            <cardinality>1</cardinality>
            <content>integer</content>
            <valid_datatypes>integer</valid_datatypes>
            <valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval:datatype string Optional
operator oval:operator equals Optional
var_ref oval:var_ref Optional
Collapse Derivation Tree:
