Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: key
Namespace: http://oval.mitre.org/XMLSchema/oval_results#windows
Type: oval_results:testedStringType
Containing Schema: windows-oval-results-schema.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
This element specifies the registry key of the matching registry key object from which the DACL was retrieved. Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.

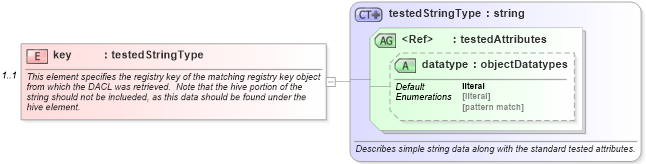

Collapse XSD Schema Diagram:
Drilldown into datatype in schema oval-results-schema_xsd Drilldown into testedAttributes in schema oval-results-schema_xsd Drilldown into testedStringType in schema oval-results-schema_xsdXSD Diagram of key in schema windows-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="key" type="oval_results:testedStringType" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>This element specifies the registry key of the matching registry key object from which the DACL was retrieved.  Note that the hive portion of the string should not be inclueded, as this data should be found under the hive element.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Regkey Effective Rights Test</parent_test>
            <cardinality>1</cardinality>
            <content>string</content>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval_results:datatype literal Optional
Collapse Derivation Tree:
