<xsd:element name="lockoutpolicy_test" substitutionGroup="oval:test">
<xsd:annotation>
<xsd:documentation>The lockoutpolicy test enumerates various attributes associated with lockout information for users and global groups in the security database.</xsd:documentation>
<xsd:appinfo>
<test_name>Lockout Policy Test</test_name>
<extends>standardTestType</extends>
<valid_sections>notes, data</valid_sections>
<example>
<lockoutpolicy_test id="wlt-0" check="all" comment="specific lockout policies are set" xmlns="http://oval.mitre.org/XMLSchema/oval#windows">
<oval:notes xmlns:oval="http://oval.mitre.org/XMLSchema/oval">
<oval:note>This is an example test written under version 4 of the OVAL schema. It is meant to give a short overview of the test and might not contain every possible child element.</oval:note>
</oval:notes>
<data operation="AND">
<force_logoff datatype="int">60</force_logoff>
<lockout_duration datatype="int">30</lockout_duration>
<lockout_observation_window datatype="int">5</lockout_observation_window>
<lockout_threshold datatype="int">3</lockout_threshold>
</data>
</lockoutpolicy_test>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:standardTestType">
<xsd:sequence>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:dataType">
<xsd:sequence>
<xsd:element name="force_logoff" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies, in seconds, the amount of time between the end of the valid logon time and the time when the user is forced to log off the network. A value of TIMEQ_FOREVER indicates that the user is never forced to log off. A value of zero indicates that the user will be forced to log off immediately when the valid logon time expires. See the USER_MODALS_INFO_0 structure returned by a call to NetUserModalsGet().</xsd:documentation>
<xsd:appinfo>
<parent_test>Lockout Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="lockout_duration" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies, in seconds, how long a locked account remains locked before it is automatically unlocked. See the USER_MODALS_INFO_3 structure returned by a call to NetUserModalsGet().</xsd:documentation>
<xsd:appinfo>
<parent_test>Lockout Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="lockout_observation_window" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the maximum time, in seconds, that can elapse between any two failed logon attempts before lockout occurs. See the USER_MODALS_INFO_3 structure returned by a call to NetUserModalsGet().</xsd:documentation>
<xsd:appinfo>
<parent_test>Lockout Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="lockout_threshold" type="oval:subtestIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the number of invalid password authentications that can occur before an account is marked "locked out." See the USER_MODALS_INFO_3 structure returned by a call to NetUserModalsGet().</xsd:documentation>
<xsd:appinfo>
<parent_test>Lockout Policy Test</parent_test>
<cardinality>0-1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
<valid_operators>equals, not equal, greater than, less than, greater than or equal, less than or equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

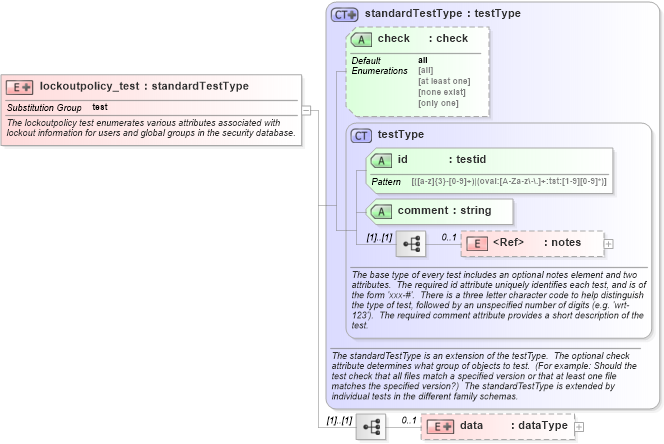

XSD Schema Diagram:
