<xsd:element name="passwordpolicy_item" substitutionGroup="system_characteristics:item">
<xsd:annotation>
<xsd:documentation>Specific policy items associated with passwords. Information is stored in the SAM or Active Directory but is encrypted or hidden so the registry_item and activedirectory_item are of no use. If this can be figured out, then the password_policy item is not needed.</xsd:documentation>
<xsd:appinfo>
<item_name>Password Policy Item</item_name>
<extends>itemType</extends>
<valid_sections>message, data</valid_sections>
<example>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:itemType">
<xsd:sequence>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="system_characteristics:dataType">
<xsd:sequence>
<xsd:element name="max_passwd_age" type="system_characteristics:dataIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies, in seconds, the maximum allowable password age. A value of TIMEQ_FOREVER (-1) indicates that the password never expires. The minimum valid value for this element is ONE_DAY (86400).</xsd:documentation>
<xsd:appinfo>
<parent_item>passwordpolicy_item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="min_passwd_age" type="system_characteristics:dataIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the minimum number of seconds that can elapse between the time a password changes and when it can be changed again. A value of zero indicates that no delay is required between password updates.</xsd:documentation>
<xsd:appinfo>
<parent_item>passwordpolicy_item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="min_passwd_len" type="system_characteristics:dataIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the minimum allowable password length. Valid values for this element are zero through PWLEN.</xsd:documentation>
<xsd:appinfo>
<parent_item>passwordpolicy_item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="password_hist_len" type="system_characteristics:dataIntType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the length of password history maintained. A new password cannot match any of the previous usrmod0_password_hist_len passwords. Valid values for this element are zero through DEF_MAX_PWHIST.</xsd:documentation>
<xsd:appinfo>
<parent_item>passwordpolicy_item</parent_item>
<cardinality>1</cardinality>
<content>integer</content>
<valid_datatypes>integer</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="password_complexity" type="system_characteristics:dataBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>passwordpolicy_item</parent_item>
<cardinality>0-1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="reversible_encryption" type="system_characteristics:dataBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>
</xsd:documentation>
<xsd:appinfo>
<parent_item>passwordpolicy_item</parent_item>
<cardinality>0-1</cardinality>
<content>boolean</content>
<valid_datatypes>boolean</valid_datatypes>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

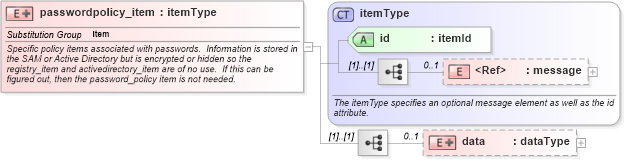

XSD Schema Diagram:
