Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: subtest
Namespace: http://oval.mitre.org/XMLSchema/oval_results#independent
Containing Schema: independent-oval-results-schema.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract
Documentation:
The subtest element specifies a particular test to be referenced. The required test_ref attribute accomplishes this by linking to a valid test id. The optional 'negate' attribute signifies that the result of an individual test should be negated during analysis. For example, consider a test that returns TRUE if a specific patch is installed. By negating this test, it now analyzes to TRUE if the patch is NOT installed. The required result attribute holds the result of the analysis, either true, false, or error.

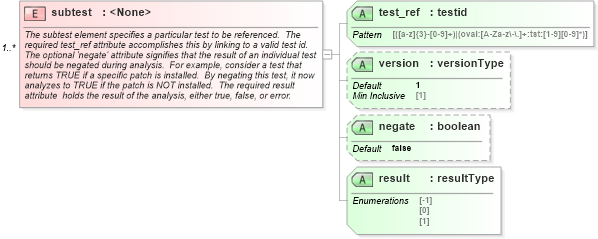

Collapse XSD Schema Diagram:
Drilldown into result in schema independent-oval-results-schema_xsd Drilldown into negate in schema independent-oval-results-schema_xsd Drilldown into version in schema independent-oval-results-schema_xsd Drilldown into test_ref in schema independent-oval-results-schema_xsdXSD Diagram of subtest in schema independent-oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="subtest" minOccurs="1" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>The subtest element specifies a particular test to be referenced.  The required test_ref attribute accomplishes this by linking to a valid test id.  The optional 'negate' attribute signifies that the result of an individual test should be negated during analysis.  For example, consider a test that returns TRUE if a specific patch is installed.  By negating this test, it now analyzes to TRUE if the patch is NOT installed.  The required result attribute  holds the result of the analysis, either true, false, or error.</xsd:documentation>
        <xsd:appinfo>
            <parent_test>Compound Test</parent_test>
            <cardinality>1-n</cardinality>
            <content>none</content>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:attribute name="test_ref" type="oval_results:testid" use="required" />
        <xsd:attribute name="version" type="oval_results:versionType" default="1" />
        <xsd:attribute name="negate" type="xsd:boolean" use="optional" default="false" />
        <xsd:attribute name="result" type="oval_results:resultType" use="required" />
    </xsd:complexType>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
test_ref independent:test_ref Required
version independent:version 1 (Optional)
negate independent:negate false Optional
result independent:result Required
