<xsd:element name="user_test" substitutionGroup="oval:test">
<xsd:annotation>
<xsd:documentation>The windows user test allows the different groups that a user belongs to be tested. Note that the group element can appear an unlimited number of times. In such cases, the test is wether the specified group contains ALL the included users (data operator is AND) or that the group contains at least one of the included users (data operator is OR).</xsd:documentation>
<xsd:appinfo>
<test_name>User Test</test_name>
<extends>standardTestType</extends>
<valid_sections>notes, object, data</valid_sections>
<example>
<user_test id="wut-0" check="all" comment="drew is member of the Administrators group" xmlns="http://oval.mitre.org/XMLSchema/oval#windows">
<oval:notes xmlns:oval="http://oval.mitre.org/XMLSchema/oval">
<oval:note>This is an example test written under version 4 of the OVAL schema. It is meant to give a short overview of the test and might not contain every possible child element.</oval:note>
</oval:notes>
<object>
<user>drew</user>
</object>
<data>
<enabled>true</enabled>
<group>Administrators</group>
</data>
</user_test>
</example>
</xsd:appinfo>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:standardTestType">
<xsd:sequence>
<xsd:element name="object" minOccurs="1" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:objectType">
<xsd:sequence>
<xsd:element name="user" type="oval:subtestStringType" minOccurs="1" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>A string that represents the name of a particular user.</xsd:documentation>
<xsd:appinfo>
<parent_test>User Test</parent_test>
<cardinality>1</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
<xsd:element name="data" minOccurs="0" maxOccurs="1">
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval:dataType">
<xsd:sequence>
<xsd:element name="enabled" type="oval:subtestBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>This element holds a boolean value that specifies whether the particular user account is enabled or not.</xsd:documentation>
<xsd:appinfo>
<parent_test>User Test</parent_test>
<cardinality>0-1</cardinality>
<content>string</content>
<valid_datatypes>boolean</valid_datatypes>
<valid_operators>equals, not equal</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="group" type="oval:subtestStringType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>A string the represents the name of a particular group. This element can be included multiple times in order to test that a user is a member of a number of different groups.</xsd:documentation>
<xsd:appinfo>
<parent_test>User Test</parent_test>
<cardinality>0-n</cardinality>
<content>string</content>
<valid_datatypes>string</valid_datatypes>
<valid_operators>equals, not equal, pattern match</valid_operators>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

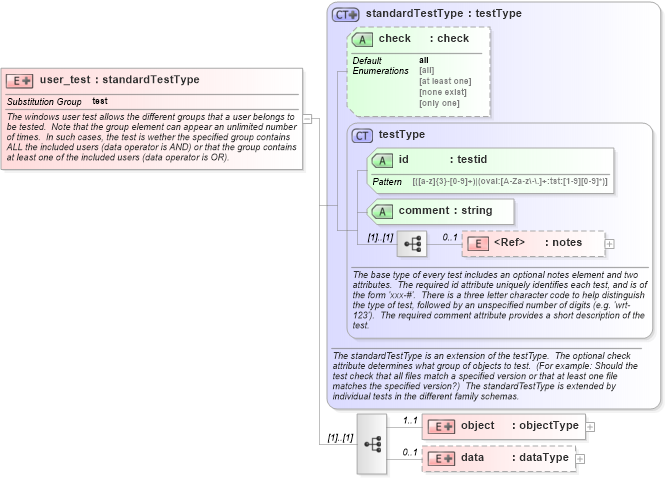

XSD Schema Diagram:
