Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: accountinfo_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#macos
Type: oval-def:ObjectType
Containing Schema: macos-definitions-schema.xsd
Abstract
Documentation:
The accountinfo_object element is used by an accountinfo_test to define the object(s) to be evaluated. This object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. An accountinfo_object consists of a single username that identifies the account from which to gather information.

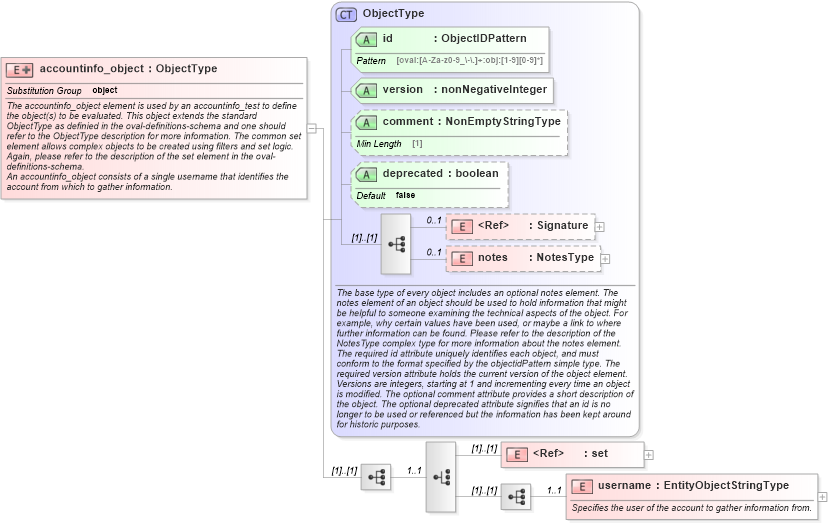

Collapse XSD Schema Diagram:
Drilldown into username in schema macos-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of accountinfo_object in schema macos-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="accountinfo_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The accountinfo_object element is used by an accountinfo_test to define the object(s) to be evaluated. This object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>An accountinfo_object consists of a single username that identifies the account from which to gather information.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="username" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>Specifies the user of the account to gather information from.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="accountobjusername" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="macos-def:accountinfo_object/macos-def:username">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the username entity of an accountinfo_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
username macos-def:username 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
