Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: attribute
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemStringType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Specifies a named value contained by the object. If the nillable attribute is set to true, then the item being represented is the higher level relative dn. Using xsi:nil here will result in a status of 'does not exist' for object_class, adstype, and value since these entities are not associated with a relative dn by itself.

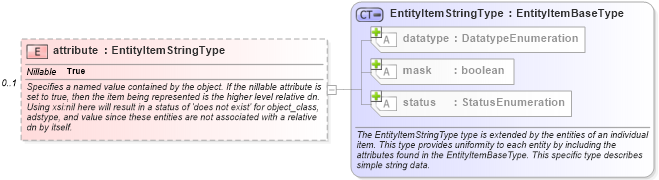

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of attribute in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="attribute" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1" nillable="true">
    <xsd:annotation>
        <xsd:documentation>Specifies a named value contained by the object. If the nillable attribute is set to true, then the item being represented is the higher level relative dn. Using xsi:nil here will result in a status of 'does not exist' for object_class, adstype, and value since these entities are not associated with a relative dn by itself.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="aditemattribute" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:activedirectory_item/win-sc:attribute">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the attribute entity of an activedirectory_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
