Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: broadcast_addr
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#unix
Type: oval-sc:EntityItemStringType
Containing Schema: unix-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The broadcast_addr entity is the broadcast IP address for this interface's network. For example 192.168.255.255.

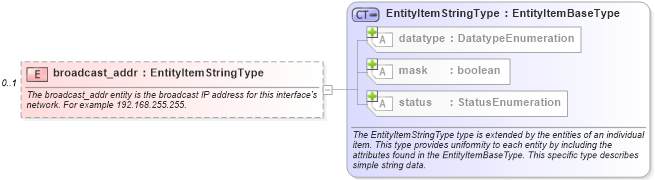

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of broadcast_addr in schema unix-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="broadcast_addr" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The broadcast_addr entity is the broadcast IP address for this interface's network. For example 192.168.255.255.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="unixinterfaceitembroadcast_addr" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="unix-sc:interface_item/unix-sc:broadcast_addr">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the broadcast_addr entity of an interface_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
