Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: CriterionType
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5
Containing Schema: oval-definitions-schema.xsd
Abstract
Documentation:
The CriterionType complex type identifies a specific test to be included in the definition's criteria. The required test_ref attribute is the actual id of the test being referenced. The optional negate attribute signifies that the result of an individual test should be negated during analysis. For example, consider a test that evaluates to TRUE if a specific patch is installed. By negating this test, it now evaluates to TRUE if the patch is NOT installed. The optional comment attribute provides a short description of the specified test and should mirror the comment attribute of the actual test.
Collapse XSD Schema Diagram:

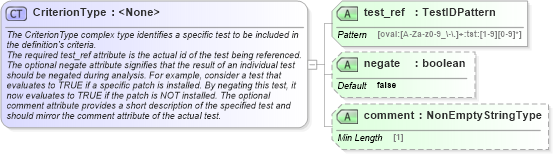

Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into negate in schema oval-definitions-schema_xsd Drilldown into test_ref in schema oval-definitions-schema_xsdXSD Diagram of CriterionType in schema oval-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="CriterionType">
    <xsd:annotation>
        <xsd:documentation>The CriterionType complex type identifies a specific test to be included in the definition's criteria.</xsd:documentation>
        <xsd:documentation>The required test_ref attribute is the actual id of the test being referenced. The optional negate attribute signifies that the result of an individual test should be negated during analysis. For example, consider a test that evaluates to TRUE if a specific patch is installed. By negating this test, it now evaluates to TRUE if the patch is NOT installed. The optional comment attribute provides a short description of the specified test and should mirror the comment attribute of the actual test.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute name="test_ref" type="oval:TestIDPattern" use="required" />
    <xsd:attribute name="negate" type="xsd:boolean" use="optional" default="false" />
    <xsd:attribute name="comment" type="oval:NonEmptyStringType" use="optional" />
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
test_ref oval-def:test_ref Required
negate oval-def:negate false Optional
comment oval-def:comment Optional
Collapse Derivation Tree:
Collapse References:
oval-def:criterion
