Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: dpkginfo_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#linux
Type: oval-def:ObjectType
Containing Schema: linux-definitions-schema.xsd
Abstract
Documentation:
The dpkginfo_object element is used by a dpkginfo test to define the object to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. A dpkginfo object consists of a single name entity that identifies the package being checked.

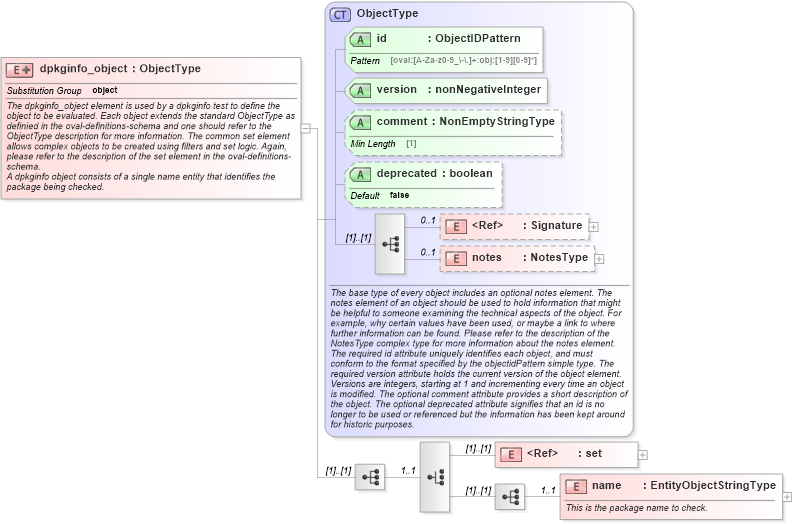

Collapse XSD Schema Diagram:
Drilldown into name in schema linux-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of dpkginfo_object in schema linux-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="dpkginfo_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The dpkginfo_object element is used by a dpkginfo test to define the object to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>A dpkginfo object consists of a single name entity that identifies the package being checked.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="name" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>This is the package name to check.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="dpkgobjname" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="linux-def:dpkginfo_object/linux-def:name">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the name entity of a dpkginfo_object should be 'string'</sch:assert>
                                                <sch:assert test="not(@operation) or @operation='equals' or @operation='not equal' or @operation='pattern match'">
                                                    <sch:value-of select="../@id" /> - operation attribute for the name entity of a dpkginfo_object should be 'equals', 'not equal', or 'pattern match'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
name linux-def:name 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
