Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: EntityItemFloatType
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5
Type: oval-sc:EntityItemBaseType
Containing Schema: oval-system-characteristics-schema.xsd
Abstract
Documentation:
The EntityItemFloatType type is extended by the entities of an individual item. This type provides uniformity to each entity by including the attributes found in the EntityItemBaseType. This specific type describes simple float data. The empty string is also allowed for cases where there was an error in the data collection of an entity and a status needs to be reported.

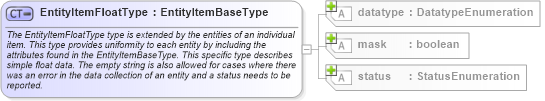

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsdXSD Diagram of EntityItemFloatType in schema oval-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="EntityItemFloatType">
    <xsd:annotation>
        <xsd:documentation>The EntityItemFloatType type is extended by the entities of an individual item. This type provides uniformity to each entity by including the attributes found in the EntityItemBaseType. This specific type describes simple float data. The empty string is also allowed for cases where there was an error in the data collection of an entity and a status needs to be reported.</xsd:documentation>
    </xsd:annotation>
    <xsd:simpleContent>
        <xsd:restriction base="oval-sc:EntityItemBaseType">
            <xsd:simpleType>
                <xsd:union memberTypes="xsd:float oval:EmptyStringType" />
            </xsd:simpleType>
        </xsd:restriction>
    </xsd:simpleContent>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
