Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: ExtendDefinitionType
Namespace: http://oval.mitre.org/XMLSchema/oval-results-5
Containing Schema: oval-results-schema.xsd
Abstract
Documentation:
The ExtendDefinitionType complex type identifies a specific definition that has been extended by the criteria. The required definition_id attribute is the actual id of the extended definition. The required version attribute is the specific version of the OVAL Definition used during analysis. The optional variable_instance identifier is a unique id that differentiates every unique instance of a definition in the OVAL Results file based on the combination of variable values used. Languages that include OVAL might reference the same definition multiple times. Each time a different set of values is supplied for the variables, a new instance of the definition must be created. (definitions that do not use variables can only have one unique instance) The inclusion of a unique instance identifier will allow the OVAL results file to report the correct result of a definition for each combination of supplied values. The optional negate attribute signifies that the result of an extended definition should be negated during analysis. For example, consider a definition that evaluates TRUE if a certain software is installed. By negating the definition, it now evaluates to TRUE if the software is NOT installed. The required result attribute holds the result of the evaluation. Please refer to the description of the resultEnumeration for details about the different result values.

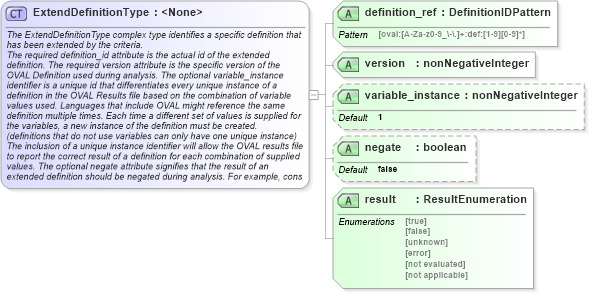

Collapse XSD Schema Diagram:
Drilldown into result in schema oval-results-schema_xsd Drilldown into negate in schema oval-results-schema_xsd Drilldown into variable_instance in schema oval-results-schema_xsd Drilldown into version in schema oval-results-schema_xsd Drilldown into definition_ref in schema oval-results-schema_xsdXSD Diagram of ExtendDefinitionType in schema oval-results-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="ExtendDefinitionType">
    <xsd:annotation>
        <xsd:documentation>The ExtendDefinitionType complex type identifies a specific definition that has been extended by the criteria.</xsd:documentation>
        <xsd:documentation>The required definition_id attribute is the actual id of the extended definition. The required version attribute is the specific version of the OVAL Definition used during analysis. The optional variable_instance identifier is a unique id that differentiates every unique instance of a definition in the OVAL Results file based on the combination of variable values used. Languages that include OVAL might reference the same definition multiple times. Each time a different set of values is supplied for the variables, a new instance of the definition must be created. (definitions that do not use variables can only have one unique instance) The inclusion of a unique instance identifier will allow the OVAL results file to report the correct result of a definition for each combination of supplied values. The optional negate attribute signifies that the result of an extended definition should be negated during analysis. For example, consider a definition that evaluates TRUE if a certain software is installed. By negating the definition, it now evaluates to TRUE if the software is NOT installed. The required result attribute holds the result of the evaluation. Please refer to the description of the resultEnumeration for details about the different result values.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute name="definition_ref" type="oval:DefinitionIDPattern" use="required" />
    <xsd:attribute name="version" type="xsd:nonNegativeInteger" use="required" />
    <xsd:attribute name="variable_instance" type="xsd:nonNegativeInteger" use="optional" default="1" />
    <xsd:attribute name="negate" type="xsd:boolean" use="optional" default="false" />
    <xsd:attribute name="result" type="oval-res:ResultEnumeration" use="required" />
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
definition_ref oval-res:definition_ref Required
version oval-res:version Required
variable_instance oval-res:variable_instance 1 Optional
negate oval-res:negate false Optional
result oval-res:result Required
Collapse Derivation Tree:
Collapse References:
oval-res:extend_definition
