Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: ComplexType
Name: FilehashBehaviors
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#independent
Containing Schema: independent-definitions-schema.xsd
Abstract
Documentation:
The FilehashBehaviors complex type defines a number of behaviors that allow a more detailed definition of the filehash_object being specified.

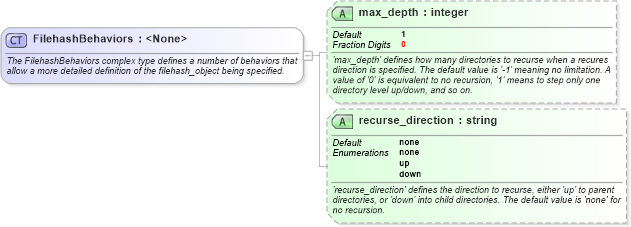

Collapse XSD Schema Diagram:
Drilldown into recurse_direction in schema independent-definitions-schema_xsd Drilldown into max_depth in schema independent-definitions-schema_xsdXSD Diagram of FilehashBehaviors in schema independent-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:complexType name="FilehashBehaviors">
    <xsd:annotation>
        <xsd:documentation>The FilehashBehaviors complex type defines a number of behaviors that allow a more detailed definition of the filehash_object being specified.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute name="max_depth" use="optional" default="1">
        <xsd:annotation>
            <xsd:documentation>'max_depth' defines how many directories to recurse when a recures direction is specified. The default value is '-1' meaning no limitation. A value of '0' is equivalent to no recursion, '1' means to step only one directory level up/down, and so on.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:integer">
                <xsd:fractionDigits value="0" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="recurse_direction" use="optional" default="none">
        <xsd:annotation>
            <xsd:documentation>'recurse_direction' defines the direction to recurse, either 'up' to parent directories, or 'down' into child directories. The default value is 'none' for no recursion.</xsd:documentation>
        </xsd:annotation>
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="none" />
                <xsd:enumeration value="up" />
                <xsd:enumeration value="down" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
max_depth ind-def:max_depth 1 Optional
recurse_direction ind-def:recurse_direction none Optional
Collapse Derivation Tree:
Collapse References:
ind-def:behaviors
