<xsd:complexType name="Filemd5Behaviors">
<xsd:annotation>
<xsd:documentation>The Filemd5Behaviors complex type defines a number of behaviors that allow a more detailed definition of the filemd5_object being specified.</xsd:documentation>
</xsd:annotation>
<xsd:attribute name="max_depth" use="optional" default="1">
<xsd:annotation>
<xsd:documentation>'max_depth' defines the maximum depth of recursion to perform when a recurse_direction is specified. A value of '0' is equivalent to no recursion, '1' means to step only one directory level up/down, and so on. The default value is '-1' meaning no limitation. Note that the default recurse_direction behavior is 'none' so even though max_depth specifies no limitation by default, the recurse_direction behavior turns recusion off.</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:integer">
<xsd:fractionDigits value="0" />
</xsd:restriction>
</xsd:simpleType>
</xsd:attribute>
<xsd:attribute name="recurse_direction" use="optional" default="none">
<xsd:annotation>
<xsd:documentation>'recurse_direction' defines the direction, either 'up' to parent directories, or 'down' into child directories to recursively search for files. When recursing up or down, one is limited by the max_depth behavior. Note that it is not an error if max_depth specifies a certain level of recursion and that level does not exist. Recursing should only go as deep as available. The default value is 'none' for no recursion.</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:string">
<xsd:enumeration value="none" />
<xsd:enumeration value="up" />
<xsd:enumeration value="down" />
</xsd:restriction>
</xsd:simpleType>
</xsd:attribute>
</xsd:complexType>
|

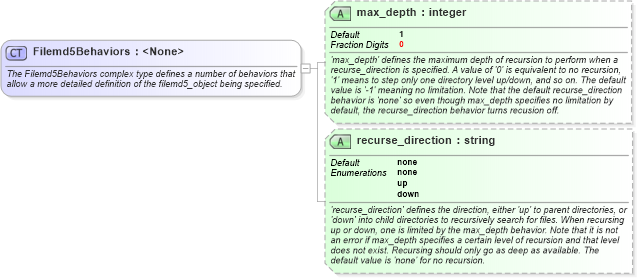

XSD Schema Diagram:
