Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: filename
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemStringType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The name of the file. If the nillable attribute is set to true, then the item being represented is the higher directory represented by the path entity. The other items associated with this item would then reflect the values associated with the directory.

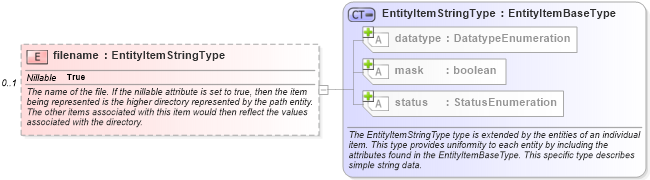

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of filename in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="filename" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1" nillable="true">
    <xsd:annotation>
        <xsd:documentation>The name of the file. If the nillable attribute is set to true, then the item being represented is the higher directory represented by the path entity. The other items associated with this item would then reflect the values associated with the directory.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="fileitemfilename" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:file_item/win-sc:filename">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the filename entity of a file_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
