Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: fmri
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#solaris
Type: oval-sc:EntityItemStringType
Containing Schema: solaris-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
The FMRI (Fault Managed Resource Identifier) entity holds the identifier associated with a service. Services managed by SMF are assigned FMRI URIs prefixed with the scheme name "svc". FMRIs used by SMF can be expressed in three ways: first as an absolute path including a location path such as "localhost" (eg svc://localhost/system/system-log:default), second as a path relative to the local machine (eg svc:/system/system-log:default), and third as simply the service identifier with the string prefixes implied (eg system/system-log:default). For OVAL, the absolute path version (first choice) should be used.

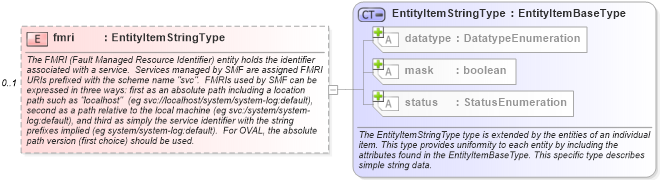

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of fmri in schema solaris-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="fmri" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>The FMRI (Fault Managed Resource Identifier) entity holds the identifier associated with a service.  Services managed by SMF are assigned FMRI URIs prefixed with the scheme name "svc".  FMRIs used by SMF can be expressed in three ways: first as an absolute path including a location path such as "localhost"  (eg svc://localhost/system/system-log:default), second as a path relative to the local machine (eg svc:/system/system-log:default), and third as simply the service identifier with the string prefixes implied (eg system/system-log:default).  For OVAL, the absolute path version (first choice) should be used.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="fmriitembase" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="sol-sc:smf_item/sol-sc:fmri">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for the fmri entity of a smf_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
