Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: group_sid
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#windows
Type: oval-sc:EntityItemStringType
Containing Schema: windows-system-characteristics-schema.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
A string that represents the SID of a particular group. If the specified user belongs to more than one group, then multiple group_sid elements should exist. If the specified user is not a member of a single group, then a single group_sid element should exist with a status of 'does not exist'. If there is an error determining the groups that the user belongs to, then a single group_sid element should be included with a status of 'error'.

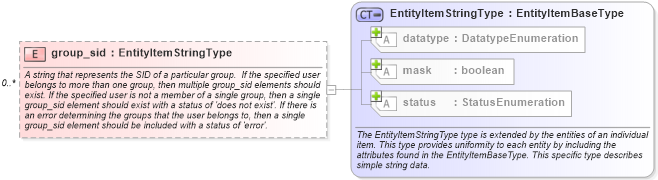

Collapse XSD Schema Diagram:
Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into mask in schema oval-system-characteristics-schema_xsd Drilldown into datatype in schema oval-system-characteristics-schema_xsd Drilldown into EntityItemStringType in schema oval-system-characteristics-schema_xsdXSD Diagram of group_sid in schema windows-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="group_sid" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>A string that represents the SID of a particular group.  If the specified user belongs to more than one group, then multiple group_sid elements should exist. If the specified user is not a member of a single group, then a single group_sid element should exist with a status of 'does not exist'. If there is an error determining the groups that the user belongs to, then a single group_sid element should be included with a status of 'error'.</xsd:documentation>
        <xsd:appinfo>
            <sch:pattern id="usersiditemgroup" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                <sch:rule context="win-sc:user_sid_item/win-sc:group_sid">
                    <sch:assert test="not(@datatype) or @datatype='string'">item <sch:value-of select="../@id" /> - datatype attribute for a group_sid entity of a user_sid_item should be 'string'</sch:assert>
                </sch:rule>
            </sch:pattern>
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
datatype oval-sc:datatype string Optional
mask oval-sc:mask false Optional
status oval-sc:status exists Optional
Collapse Derivation Tree:
